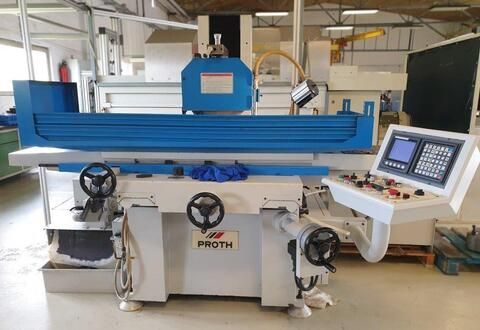

Proth PSGS 4080 AH

900 mm X travel
400 mm Y travel
330 mm Z travel

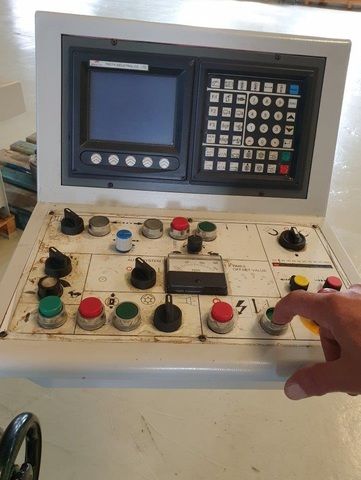

Conventional control with programmable vertical downfeed
800 × 400 mm table size
800 × 400 × 80 mm magnetic plate size
730 kg table load capacity
600 mm max distance spindle nose to table
422 mm max distance table to grinding wheel
342 mm max distance magnetic plate to grinding wheel
355 × 38 × 127 mm grinding wheel size
3000 rpm max spindle speed
4 kW spindle motor drive
2300 × 1900 × 2100 mm machine size
2800 kg machine weight

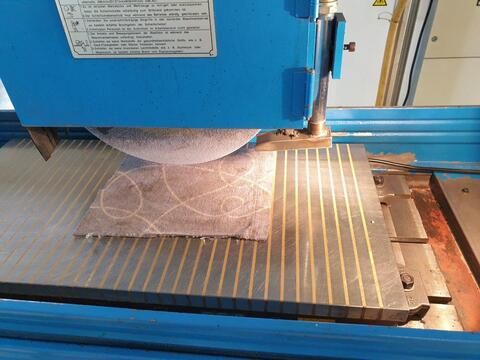

Electro-magnetic clamping plate
Automatic de-magnetising
Coolant unit and suction unit
Coolant unit with paper band filter and magnet filter
Cross grinding
Parallel dressing
Balancing scales
Electrical motorised rapid displacement vertical
Grinding wheel flange
Grinding wheel
Balancing

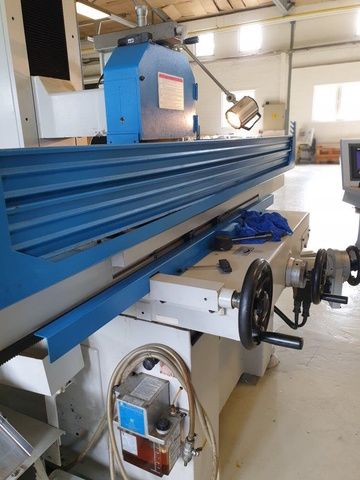

Halogen light
Coolant and filtration unit

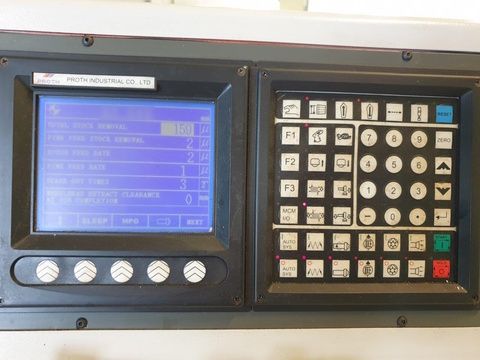

Auto cycle infeed adjustment
