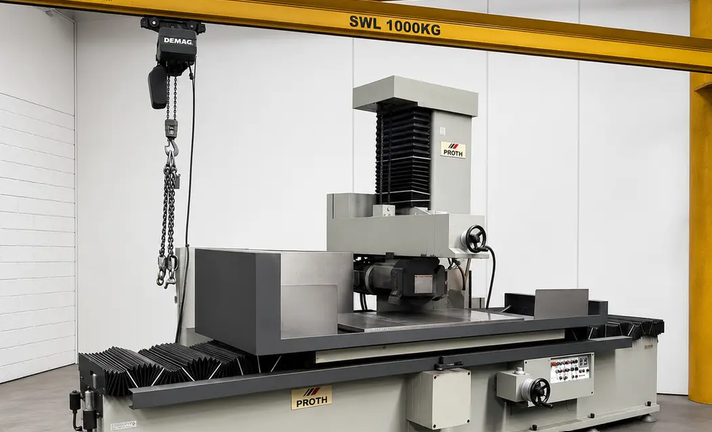

PSGO-75150AHR

Table grinding area: 750 × 1,500 mm
Table size: 750 × 1,500 mm
Maximum travel (Cross × Longitudinal): 810 × 1,650 mm
Maximum grinding height: 522 mm
Spindle center height from table: 700 mm
Table speed: 1–25 m/min
Automatic cross feed: 0.1–15 mm/stroke
Continuous cross feed: 2,000 mm/min
Grinding wheel size: 355 × 50 × 127 mm
Grinding wheel diameter: 355 mm
Grinding wheel width: 50 mm
Spindle speed: 1,500 RPM
Spindle motor: 7.5 kW (10 HP)
Hydraulic motor: 5.6 kW (7.5 HP)
Table load capacity: 2,500 kg
Machine dimensions: Approx. 6.0 × 2.55 × 2.6 m
Machine weight: Approx. 11,000 kg
Electromagnetic chuck
Coolant system
Filtration system
Wheel balancing equipment
Hydraulic reciprocating table
Horizontal surface grinder
