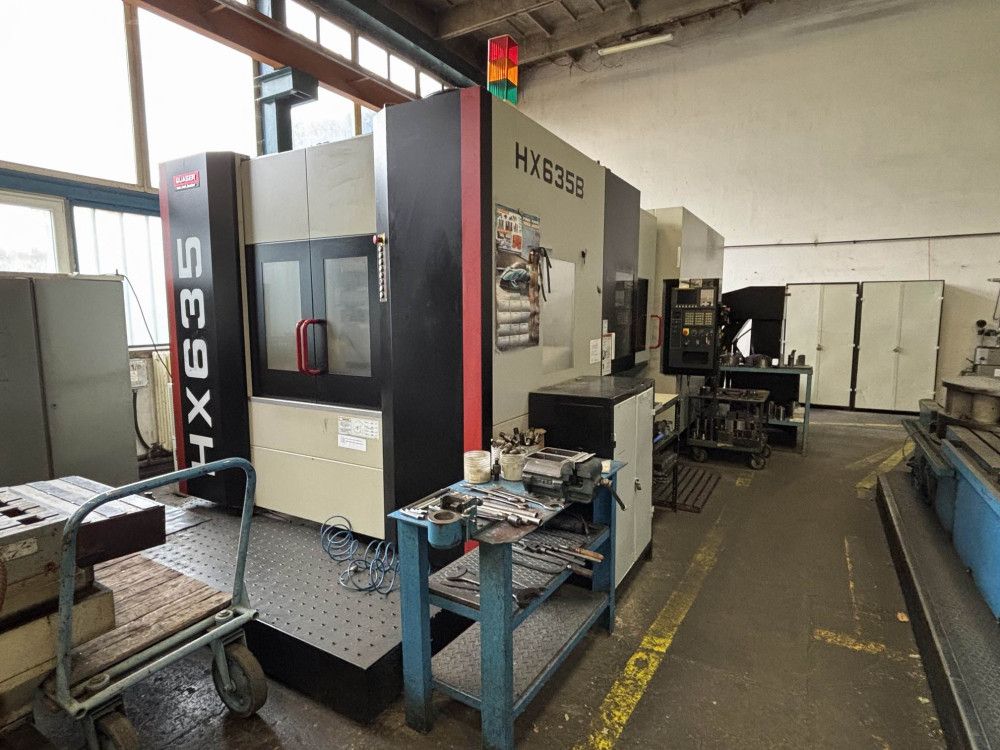

Quaser HX635B-HT 4 Axis

system FANUC 18 iMB/0iMD/31iA/31iB
x/y/z= 1200/1000/1000 mm
table 2 pallets with 360 degree continuous rotary table, 630 x 630 mm
max. work swing diameter Ø950 mm (Ø37.4")
max. work piece height Ø950 mm (37.4")
B minimum indexing (degree) 1 / 0.001
table load capacity 900 kg (1,984 lbs)

Pallet changer
number of pallet 2
method of pallet changer arm type

Main spindle
spindle taper BT50 taper (DIN69871 BT50)
max. spindle speed 6000

Tool Changer
magazine positions 40 (std.)
max. tool diameter 110 mm (4.3")
max. tool length 500 mm (19.7")
oil cooler
dimensions l x w x h 6650 x 4400 x 3100 mm
weight 15500 kg
