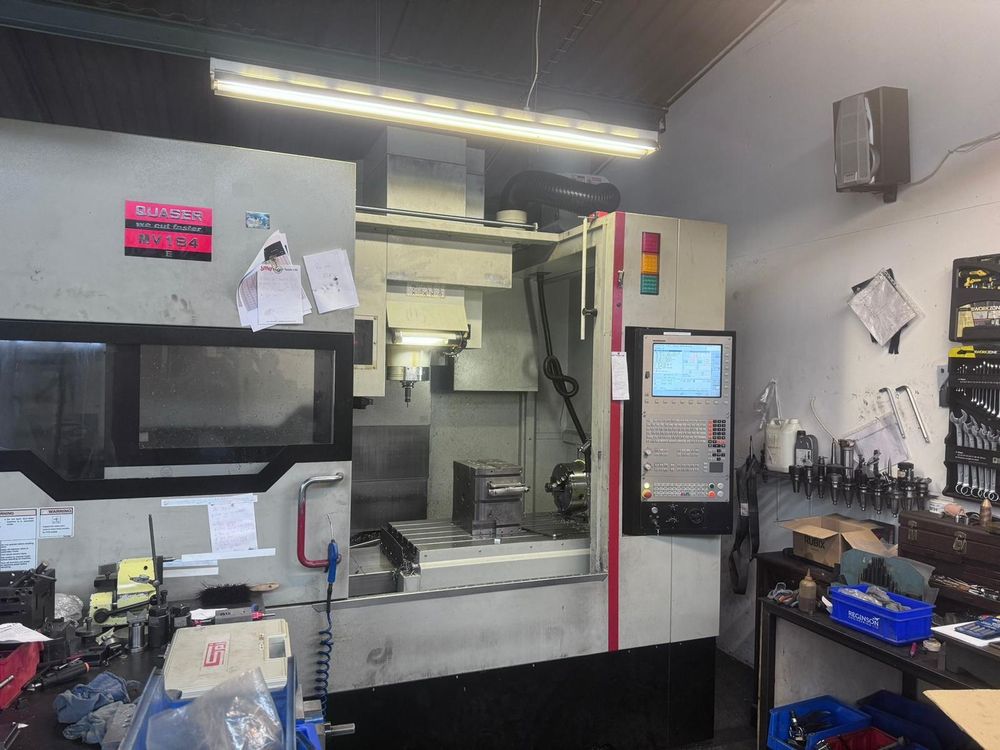

Quaser MV184E 3 Axis
Ref :
2745727-3-GO
Condition :
Used
Manufacturer :
Quaser
Model :
MV184E
Nb Of Axis :
3 Axis
Year(s) :
2014
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Rapid feedrates XYZ 40 × 40 × 36 m/min
Control Heidenhain TNC620
4th axis rotary table
Coolant
Interlocked guards
Low volt light
Remote hand wheel
Through spindle coolant
Spindle motor power 18.5 kW
Spindle speed 12000 rpm
Table size 1200 × 600 mm
Tool change capacity 30 station
Tool change time (chip to chip) 4 seconds
Tool size BT40
Maximum tool diameter 76.2 mm (125 mm with empty adjacent pots)
Maximum tool length 280 mm
Maximum tool weight 7 kg
Maximum workpiece weight 500 kg
Min–Max height under spindle 100–710 mm
Traverses XYZ 1020 × 610 × 610 mm
Machine dimensions 3340 × 2920 × 2860 mm
Machine weight 7090 kg
