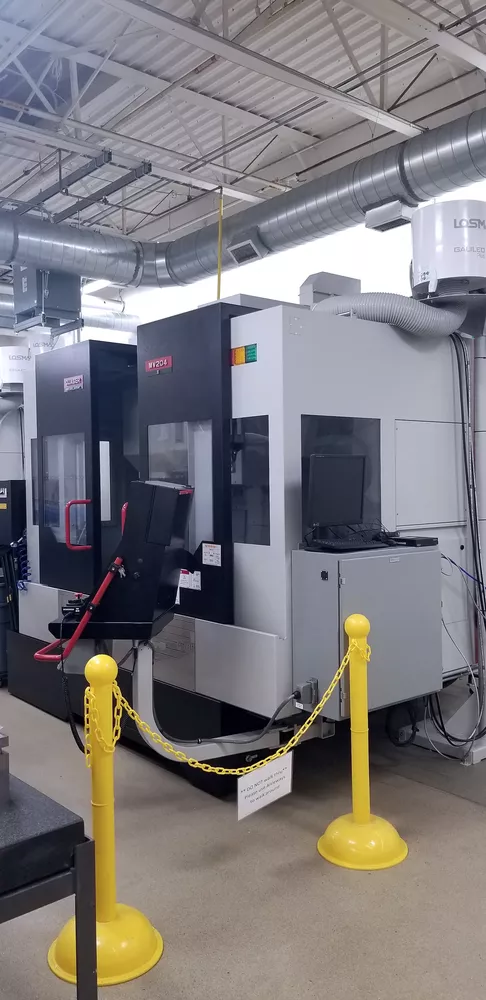

Quaser MV204E/12B 3 Axis

QUASER MV204E/12B
2019

Table size 55.12" x 27.56"
X-axis travel 50"
Y-axis travel 27.56"
Z-axis travel 24.02"
Table load capacity 2205 lbs
Rapid traverse X-axis 1417 IPM
Rapid traverse Y-axis 1417 IPM
Rapid traverse Z-axis 1260 IPM
Spindle taper 40 taper
ATC capacity 60 tools
Maximum tool diameter 3"
Maximum tool length 11.81"
Maximum tool weight 15.43 lbs
Machine height 129.9"
Machine footprint 145.7" x 159.5"
Machine weight 22,000 lbs
Only 7 hours cutting time
HMI with software
Data server with 400 BLA and 1GB + CF card
725 psi through-spindle coolant with filtration unit and mist collector
60-tool 40-taper ATC (upgraded from 30-tool)
Heidenhain optical scales X, Y, Z
Renishaw TS-27 tool length setting probe
Renishaw OMP-40 work probe
Automatic lubrication for linear guide
Oil skimmer
Modified ATC sheet metal to fit larger tools
Air/hydraulic booster
