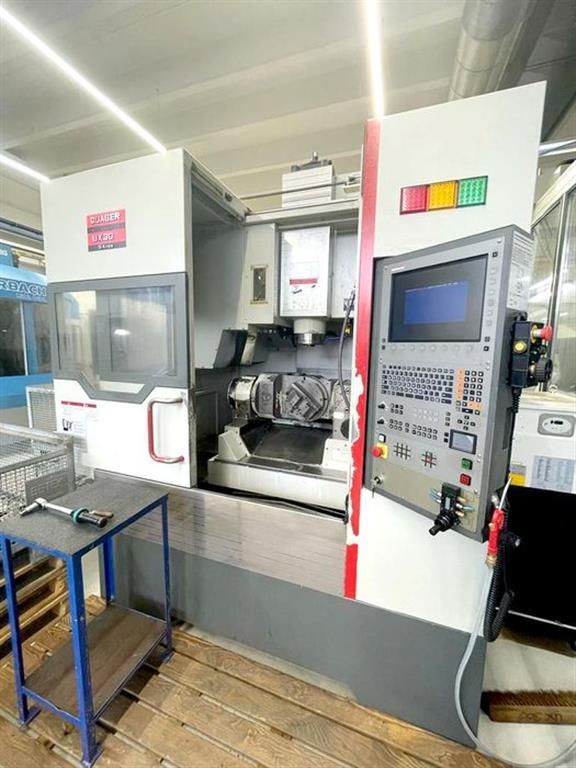

Quaser UX 300/15C 5 Axis

X-axis travel: 410 mm
Y-axis travel: 610 mm
Z-axis travel: 500 mm
C-axis rotation: 360°
B-axis tilt: +30° to +120°

Control: HEIDENHAIN iTNC 530 smart NC
Spindle speed: 15,000 rpm
Tool holder: SK 40
Tool changer capacity: 48 positions
Table size: 320 x 320 mm
Maximum table load: 100 kg
Total connected load: 35 kVA
Machine weight: 7,400 kg
Space requirement length: 4.15 m
Space requirement width: 3.8 m
Space requirement height: 3.28 m

Features / Equipment
5-axis simultaneous machining
NC rotary swivel table
Chip conveyor
High-pressure coolant system 20 bar
3D touch probe
Kinematics optimization function
Electronic handwheel
Power-on hours counter approx. 9,600 h
Spindle hours counter approx. 3,500 h
