1/1
Rafamet Engine Lathe 27.7 rpm UBB 140/2
Ref :
2724686-3-AW
Condition :
Used
Manufacturer :
Rafamet
Type :
Engine Lathe
Spindle Speed :
27.7 rpm
Model :
UBB 140/2
Year(s) :
1972
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)

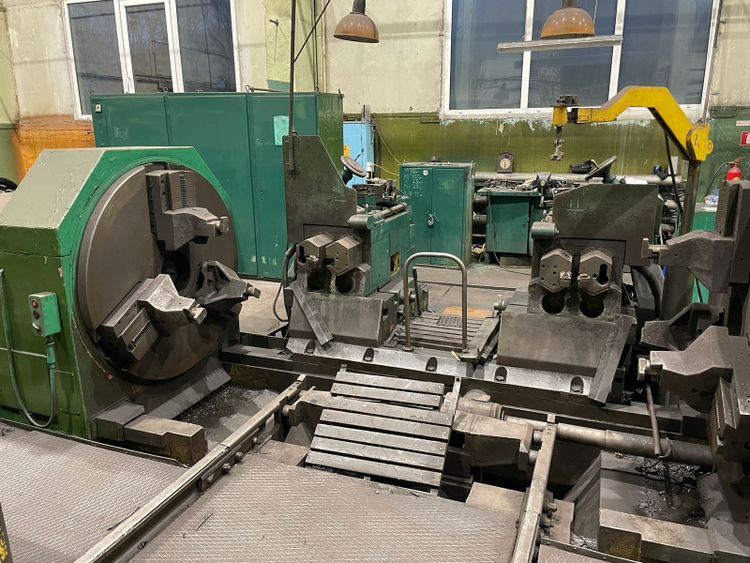

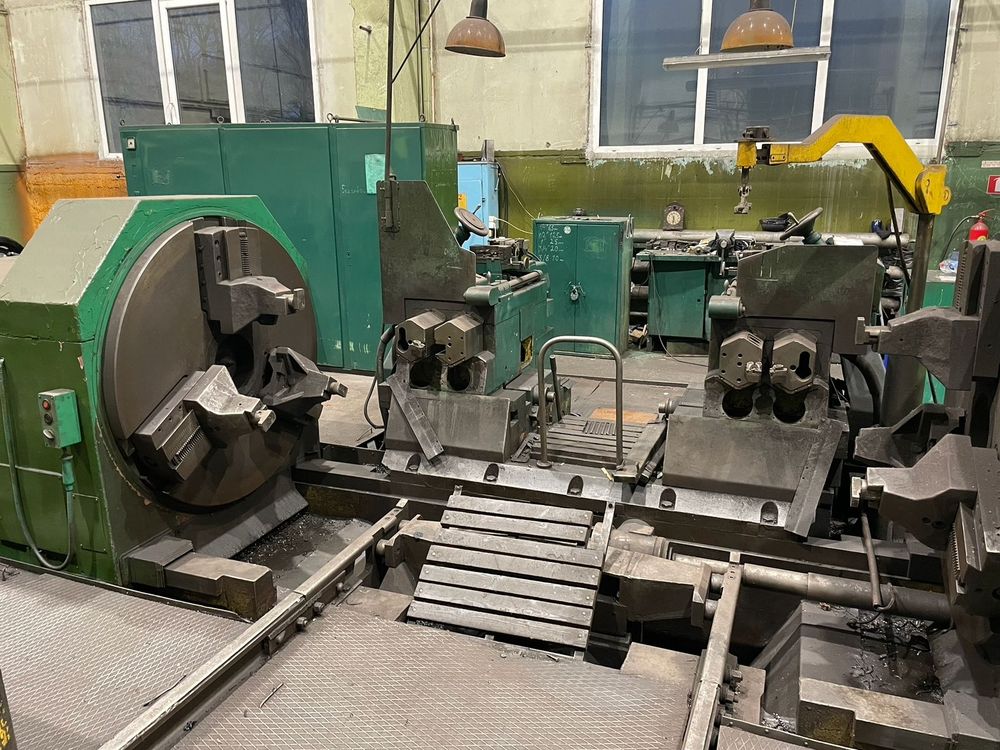

RAFAMET UBB 140/2
1972
Track gauge: 1435 mm and 1524 mm
Minimum wheelset axle length: 1640 mm
Maximum wheelset axle length: 3150 mm
Minimum wheel tread diameter: 850 mm
Maximum wheel tread diameter: 1400 mm
Clamping diameter: 720–1350 mm
Maximum tire width: 150 mm
Spindle speeds: 3.7 – 27.7 rpm
Feed speeds: 0.45 – 4.5 mm/rev
Total power required: 119.5 kW
Machine dimensions: 8690 x 3260 x 2830 mm
Machine weight: 55000 kg
In-floor installation design
Dual synchronous cutting units
Machining without wheelset disassembly
Symmetrical machining in a single cycle
Suitable for railway maintenance and depots
High operational precision and stability
