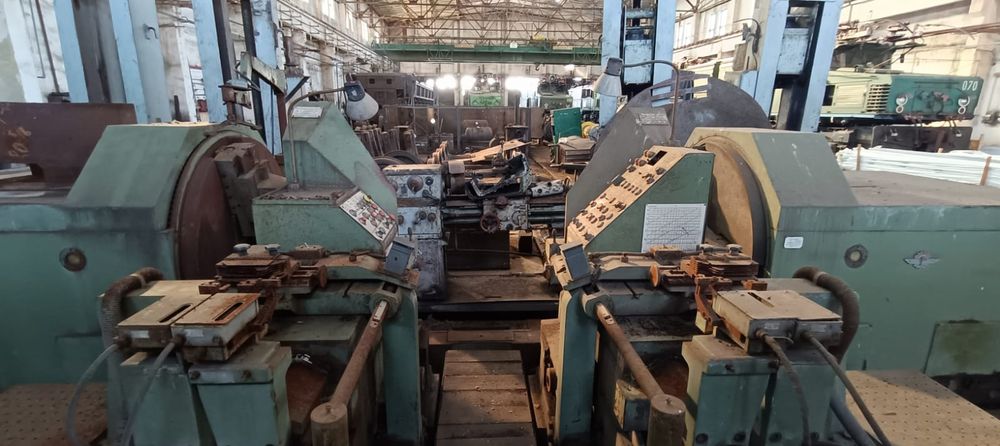

Rafamet Railway wheel lathe 27 rpm UBC 150
Ref :
2773217-3-AW
Condition :
Used
Manufacturer :
Rafamet
Type :
Railway wheel lathe
Spindle Speed :
27 rpm
Model :
UBC 150
Year(s) :
1987
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Max working diameter: 700–1500 mm
Wheelset axle length minimum: 1640 mm
Wheelset axle length maximum: 3000 mm
Wheelset gauge: 1435 mm
Track width: 1435 mm
Track width: 1524 mm
Track width: 1676 mm
Clamping diameter: 550–1350 mm
Maximum tire width: 140 mm
Spindle speed range: 9–27 rpm
Feed speed range: 1.6–50 mm/min
Total power required: 172 kW
Machine dimensions: 8700 x 3600 x 3200 mm
Machine weight: 59,200 kg
In-floor installation
Wheelset machining without disassembly
Two synchronously operating cutting units
Simultaneous machining of both wheels
Heavy-duty machine construction
