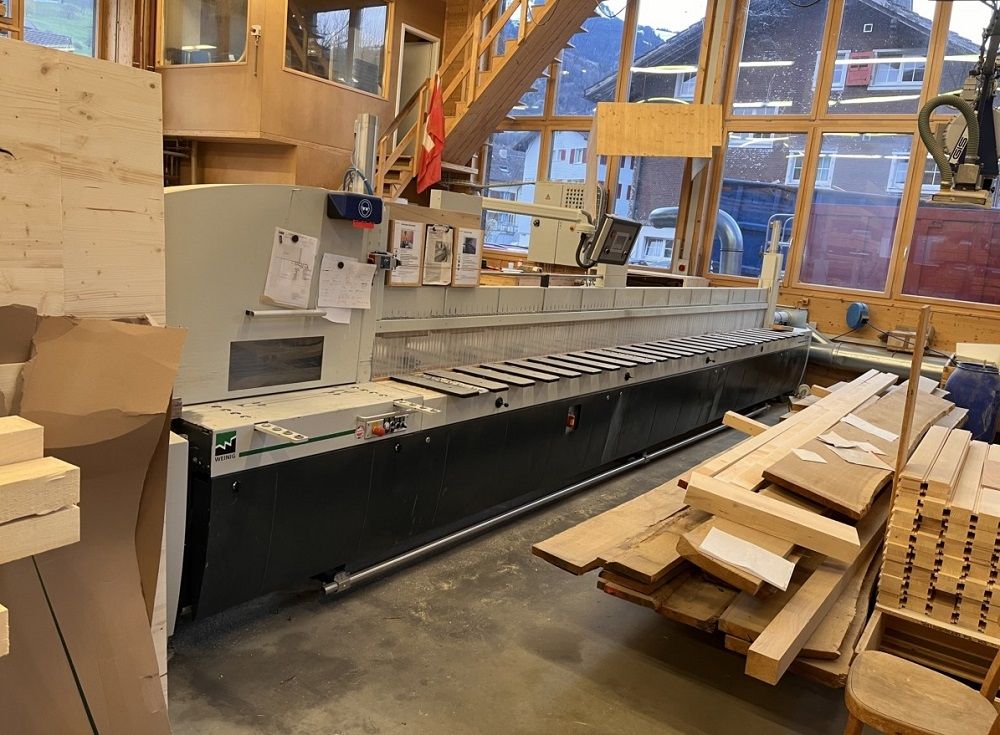

Raimann Flexirip 6200 "Jrionline" Single-blade stroke circular saw

Cutting length 6200 mm
Machine base, carriage, feed
- Motor according to IE3 standard: 11 kW (15 HP)
- Precise cutting thanks to the self-supporting, torsion-resistant steel construction and carriage guides on generously dimensioned, hardened,
and ground round steel tracks. Extra-long and wide carriage with ball-bearing rollers, precisely adjustable and play-free via eccentric axes.
- Clean cutting thanks to the stepless height adjustment of the saw blade for quick and optimal adjustment of the saw blade projection to the workpiece thickness. (Levels 1-18)
- Continuously adjustable feed speed via pedal across the entire cutting length from 1-80 m/min
- Potentiometer for presetting the maximum feed speed
- Anti-blocking system for FlexiRip: If the maximum permissible load is exceeded, the saw blade automatically lowers to prevent jamming.
The saw carriage then returns to the start position. Your advantage: Reliable protection against machine overload and sawblade jamming
- Saw shaft speed: 2,900 rpm
- Maximum cutting height:
Sawblade diameter 400 mm: Max. cutting height 65 mm
Sawblade diameter 450 mm: Max. cutting height 90 mm
Sawblade diameter 500 mm: Max. cutting height 115 mm
Sawblade diameter 550 mm: Max. cutting height 140 mm

Width stop and machine table
- Width stop adjustment via several control levers on the front of the machine for precise positioning of the stop with a large digital display, easy to rotate and tilt.
- Width stop in a cantilever design with 6 pneumatically pivoting stop cams
- Smooth, even, and backlash-free operation of the stop
- Width stop driven by 2 hardened, ground ball screws, 32 mm diameter
- Maximum usable width (standard): 600 mm
- 6 cross chains in the rear machine table, including an extension to the vibrating feeder with roller conveyor transfer (L = approx. 600 mm) to the vibrating feeder.
Chain distribution according to the layout plan

Control System
- Electronic machine and stop control
"PLC control" with easy-to-read touchscreen on the left side at the start of the cut, mounted at eye level, easily adjustable for rotation, tilt, and height.

Ten different cutting lists can store 10 width dimensions each and easily retrieved by touching the screen.
These dimensions can be accessed either absolutely or as consecutive dimensions, the latter for working from back to front.

Furthermore, for the consecutive sequence from back to front, five different dimensions with target quantities can be stored for automatic board cutting.
- The width stop's free travel function can be selected via the touchscreen.
- Error diagnostics via error display and cause note in plain text on the screen.
Hour and cut counters for precise recording and output of production output.
- Rotatable control panel on the swivel arm is particularly advantageous when cutting large-format panels.

Operation and Tools
- Workpiece clamp mounted on the upper guard beam, inside the slats.
Clamp with positive guidance via racks and torsion shaft.
This ensures precise positioning, parallel to the machine table, even with short or offset workpieces.
Lifting and lowering movements are electro-pneumatically controlled.
Hold-down clamp length: 3000 mm from the start of the cut.
The width stop can be moved to the zero line by up to 40 mm.
The hold-down clamp may only be used on the horizontal surface of the workpiece.

- Zero-cut device for positioning the width stop under the hold-down clamp, including a special wooden insert with a rubber pressure surface.
Maximum cutting height with zero-cut device: 190 mm
- 3 ball plates with 6 balls each in the front machine table, freely interchangeable
- Ball plates, connecting the rip saw and miter saw, in the front machine table on the left, outside the cutting area
- 3 ball plates extended to 800 mm in the front machine table, frely interchangeable, with floor support

- 1 red laser to indicate the cutting path. 30 mW
This allows the operator to optimally utilize the wood during trimming and cutting.
Range, depending on lighting conditions: max. 6 m
(If the lighting conditions at the machine location are too bright, especially for machines with longer cutting lengths, a second laser is recommended.)

- 1 additional red laser. 30 mW
- Quick and safe sawblade changes thanks to the "Easyfix" quick-clamping system and horizontal and vertical riving knife guides
- Self-opening guard with two gas springs
- Sawblade bore diameter 80 mm
- Riving knife for sawblade diameter 500 mm

Electrical System
- Control cabinet integrated into the machine frame
- Voltage/Frequency: 400 V / 50 Hz

Work and Operational Safety
- Lowerable saw blade and safety and extraction beam with transparent and shatter-proof 8 mm thick slats.
- Emergency stop device on the control panel and as a pull cord over the entire cutting area.
- Clear working conditions thanks to the large opening stroke of the safety and extraction beam.
- Cable guide chain mounted on the rear of the machine, protected against waste strips.

Effortless Maintenance
- Ground clearance for easy cleaning.
Downward-pivoting cover panels on the front of the machine provide easy
access to the components and, most importantly, allow for quick and easy removal of any splinters.

Connection Data
- Permissible ambient temperature between 5 and 35°C
- Extraction nozzle top right Ø 160 mm
- Extraction nozzle bottom left Ø 160 mm
- Extraction air speed 30 m/sec
- Total air consumption 4340 m³/h
- Air connection 6-8 bar

Noise emission
Workplace emission value
- Idle: LpA = 75 dB(A)
- During processing: LpA = 88 dB(A)
Sound power
- Idle: LwA = 94 dB(A)
- During processing: LwA = 106 dB(A) according to EN 1870-8 and ISO 7960 Annex Q
Measurement uncertainty constant K = 4 dB(A)

- Working height 915 mm
- Total length: Cutting length + 2035 mm
- Total width: Usable width + 990 mm
- Height: 2090 mm

Detailed technical information according to the installation plan!
Paint finish:
- Light gray RAL 7035
- Anthracite RAL 7016
