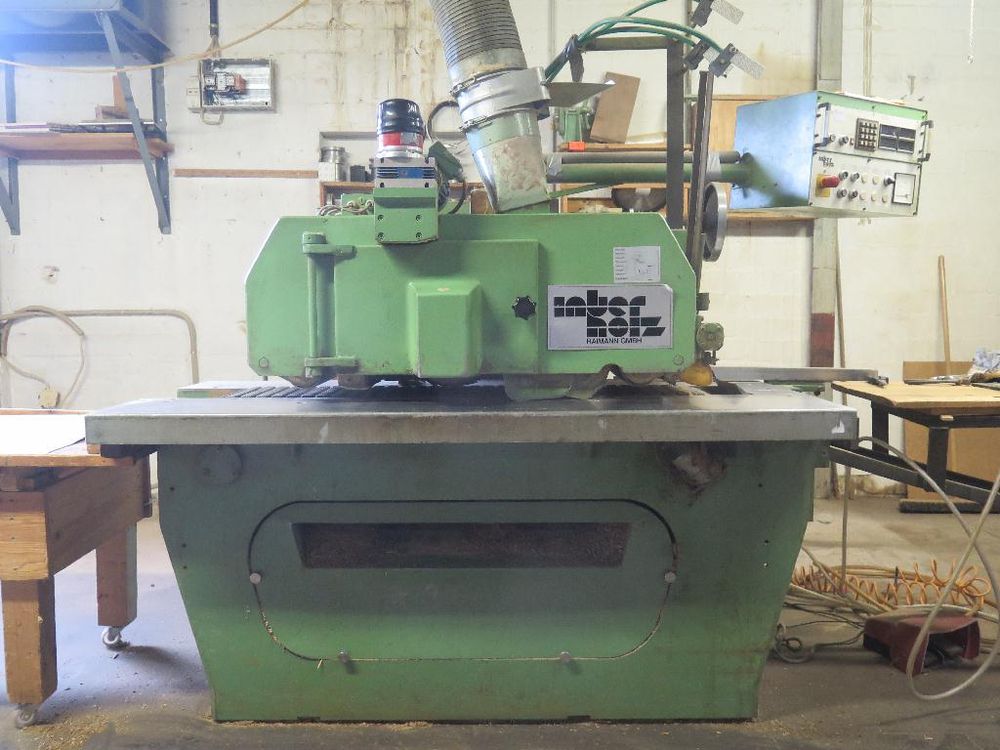

Raimann K 23 E Multi rip saw

Multi rip saw with variable sawblade
with 2nd saw bushing
with 3 laser lights
operating board for positioning control

cutting height without wood inlay 120 mm
cutting height with wood inlay max. 110 mm
cutting height with moveable sawblade without wood inlay max. 105 mm
cutting widht 230 mm
transport chain width 250 mm
sawblade diameter max. 360 mm
sawblade diameter min. 250 mm
infeed speed 8 – 35 m/min.
infeed motor 1,1 kW
saw motor 37 kW
diameter of sawspindle 65 mm
sawblade bore hole 80 mm
shortest wood bar length at 110 mm cutting height without wood inlay 750 mm
shortest wood bar length with wood inlay 290 mm
max. throughfeed width 460 mm
table height 850 mm
table length 1770 mm

machine size 2400 mm x 1500 mm x 1600 mm
weight: approx. 2500 kg
