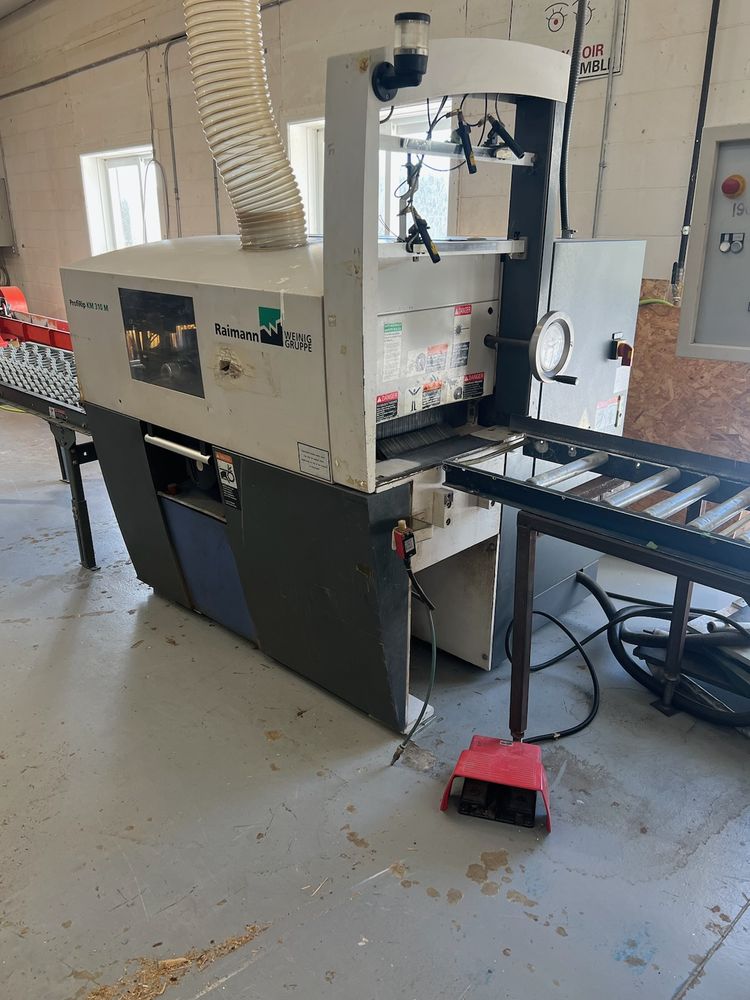

Raimann ProfiRip KM 310 M Rip Saw

12-1/4″ Max. width cap. with 25″ feed width
13-1/2″ chain width, 50 HP
4,200 RPM V-belt drive arbor with (1) movable and (2) fixed blade; shifting blades positioned from operator controls.
As the computer or operator moves blade, laser light follows; fixed saw blade with Quick Fix
hydro-arbor is mounted on an individual collar that slides up-and-down the arbor into position,
then locks into place by tightening end of arbor; no tools & no spacers required.

Specifications:
12″ Dia. saw blades
65 mm (2-1/2″ dia.) arbor
4-1/4″ max. depth of cut
17-3/4″ centers between upper holddown rollers (phenolic pressure holddown shoe plate included); 3/4″ min. strip width
19-1/2″ min. stock length.
Variable feed speed from 13 115 FPM, feed drive 2.2 HP motor, provision for chain spikes every 3rd chain link, automatic chain lubrication.
(2) Sets of top & bottom anti-kickback fingers, extended infeed with additional bed roll, and adjustable infeed fence.
Complete with: Automatic over-thickness shutoff on infeed.
(3) Laser Lights.
Automatic STAR-DELTA starting.
Proficut 2″ PLC Controls. 8 Dia. dust hood.
