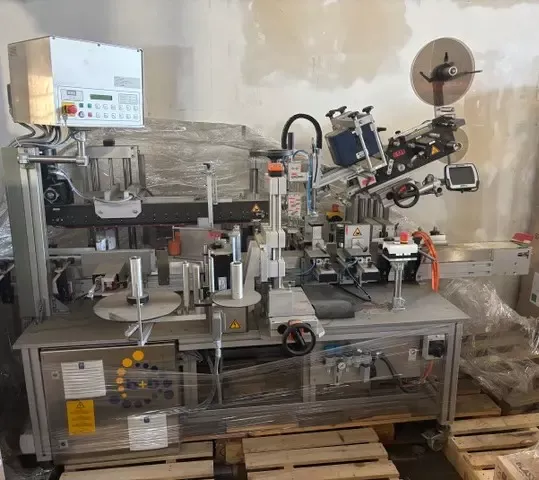

Rapid Self Adhesive Labeler

Capacity: Up to 40 pcs/min (depending on container size)
Formats: Formed glass containers (approx. 0.05 l – 0.7 l)
Labelling Type: Self-adhesive (pressure-sensitive)
Label Positions: Seal label, side/front label, back label
Label Applicators:
• RAPID 60 SM (max. label width 60 mm)
• 2x RAPID 120 SM (max. label width 124 mm)
Label Formats:
• Side label: max. 85 mm (W) × 70 mm (L)
• Seal label: max. 20 mm (W) × 150 mm (L)
Label Roll Specifications:
• Core diameter: 76 mm
• Outer diameter: max. 290 mm
• Winding: outside winding
Dimensions: Approx. 2,510 × 1,400 × 1,800 mm (L × W × H)
Weight: Approx. 450 kg
Working Height: Adjustable, approx. 800 – 900 mm
Power Supply: 400 V / 3 Ph / 5.5 kW
Pneumatic Supply: 1/2", 6 bar, clean and oil-free compressed air
Direction of Operation: From left to right
Control System: Siemens S7 PLC

Scope of Delivery
Fully automatic linear labelling machine b+b RAPID SM
Conveyor system with adjustable speed
Pneumatic product separation and alignment stations
Upper stabilization belt
Product rotation station
RAPID 60 SM and 2x RAPID 120 SM label applicators
Domino V120i thermal transfer printer
Product sensor set
Electrical control cabinet with Siemens S7 PLC
