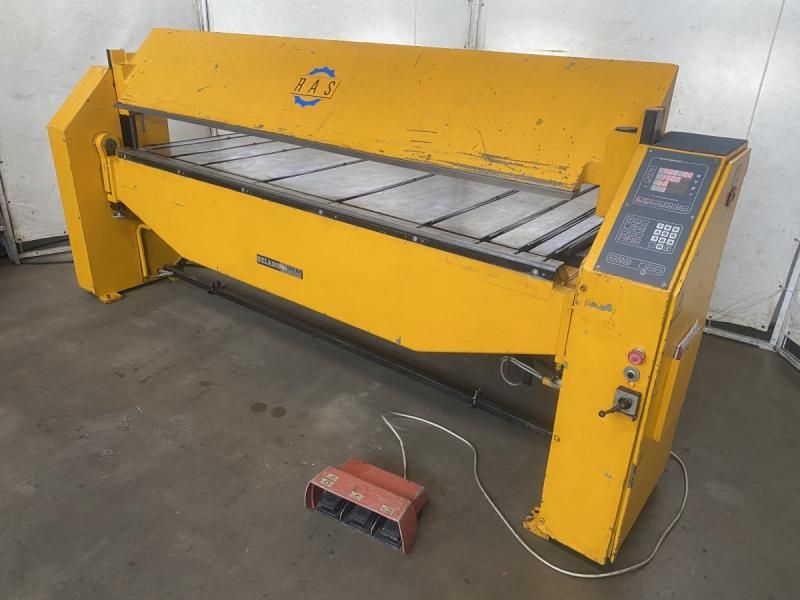

Ras 64.25

Bending length (effective length): 2,540 mm
Maximum sheet thickness at 400 N/mm²: 2.5 mm
Ram (upper beam) stroke: 210 mm
Bending beam adjustment: 30 mm
Back-gauge range: 6 to 1,550 mm
Compressed air requirement: 5 bar
Motor power for back-gauge: 0.38 kW
Motor power for upper beam adjustment: 1.1 kW
Motor power for bending beam: 1.5 kW
Control: Multibend 2000 (RAS)
Single-piece bending beam (top rail) angle: 135°
Back-gauge travel: 500 mm
Back-gauge fingers: pneumatic at 500/1,000 mm positions, fixed at 1,500 mm
Footswitch: included
Drive for bending beam: gear motor and gear-tooth drive
Electrical diagram: present
Space requirement (L×W×H): 3,330 × 1,850 × 1,300 mm
Weight: 2,000 kg
