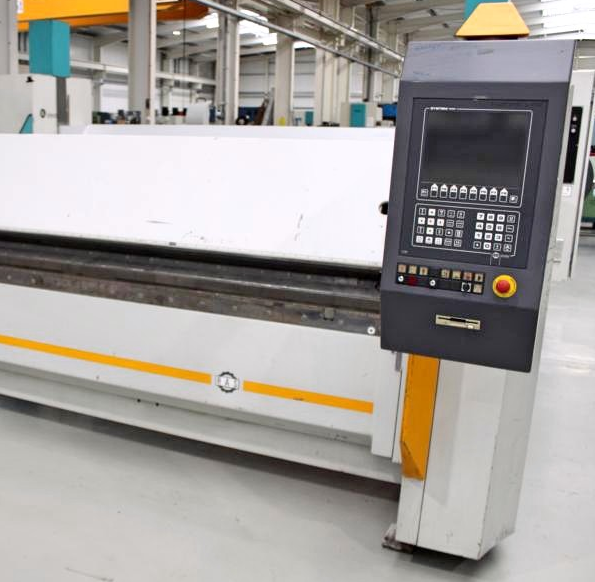

Ras 73.30

Sheet width 3200 mm
Plate thickness 3.0 mm ST
Thickness at Niro-steel 2.0 mm
Opening width / upper beam 300 mm
Speed OW 40.0 mm/sec
Bending beam adjustment 80.0 mm
Work height max. 900 mm
Speed BW 90.0 Grad/sec
Control MULTIBEND 5000
Back stop adjustable 10 - 1550 mm
Accuracy +/- 0.1 mm
Air pressure 5.0 bar
Operating hours approx. 1,000 h
Voltage 400 V
Total power requirement 2x 4.0 kW
Weight 4400 kg
Machine dimensions 4295 x 2225 x 1775 mm
Motorized universal swivel bending machine
High-precision mechanics with modern control technology
For individual and series production
Robust high-speed machine with high axis speeds
Torsion-free welded construction
Material and tool library
Swiveling - front right
1x emergency stop button
CNC electro-motorized upper beam adjustment
Fast closing and opening speed
Programmable opening and closing height
Bending radii without special tools (multiple bends)
Rigid upper beam for straight bending parts
1x set of RAS split upper tools, height 80 mm
RAS "click-in" tool system
CNC electro-motorized bending beam adjustment
Fast swivel movement: short production time
Crowning system compensates for deformation by the bending forces
1x set of RAS split bending tools
CNC electro-motoric back stop
Fast positioning, repeatable work
Table plates hold the weight of the sheet
Stainless steel table plates with ball rollers
2x freely movable double foot switch
1x RAS tool trolley for bending tools (movable)
Operating instructions (PDF) + original circuit diagram
