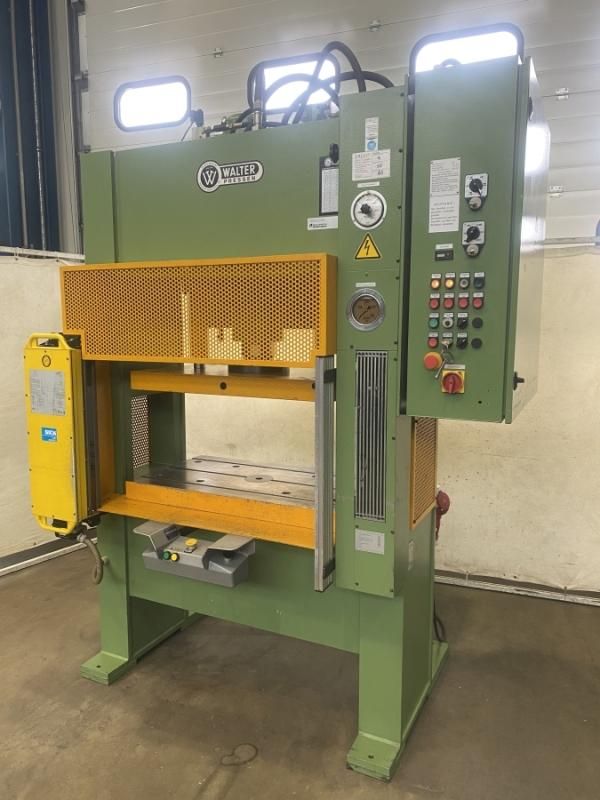

Raster, Zeulenroda (WALTER) WUP-S 60 60 ton

Press force: 60 ton
Frame width: 1,090 mm
Clearance between frames sideways: 275 mm
Ram surface: 890 x 540 mm
Table surface: 990 x 540 mm
Maximum ram stroke: 300 mm
Maximum installation height: 390 mm
Table height over floor: 900 mm
Hydraulic operating pressure: 250 bar
Rapid downward speed: 47 mm/s
Rapid upward speed: 75 mm/s
Working speed: 15 mm/s
Return speed: 37 mm/s
Motor power: 15 kW (2 x 7.5 kW)
Power supply: 400 V, 50 Hz, 15.85 kW
Safety light barrier: SICK LVS 600
Manually adjustable end stop cams for stroke limitation
Press force adjustment via handwheel
Stepless press force dwell time adjustment
Two-hand operation at the machine
Ram plate guided by 2 additional lateral guide rods, Ø 50 mm
Table plate with 18 mm T-slots, slot distance 185 mm
Through-hole in table plate Ø 100 mm with reduction insert Ø 30 mm
Ram plate with 40 mm bore and clamping screw
Electrical cabinet at the machine side
Three monitored hydraulic safety valves
UVV for manual loading
Electrical schematic provided
Required space L x W x H: 1,900 x 1,350 x 2,570 mm
Machine weight: 3.1 ton
Condition: Good
