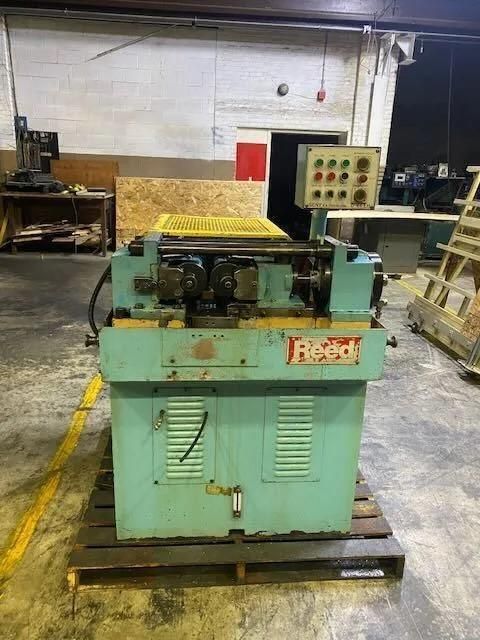

Reed D44EH Spindle diameter: 1.58″

Ref : 2748358-3-MT

Condition : Used

Manufacturer : Reed

Model : D44EH

Short Description : Spindle diameter: 1.58″

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Thread/Form diameter (In-feed): 1-1/2″ (40 mm)
Thread/Form diameter (Thru-feed): 5/8″ (16 mm)
Thread/Form length (In-feed): Up to 3″ (80 mm)
Thread/Form length (Thru-feed): 20 ft (6 m)
Maximum die diameter: 4-3/4″ (120 mm)
Maximum die width: 3″ (80 mm)
Die I.D.: 1-1/2″ (40 mm)
Maximum rolling force: 7 tons
Electrics: 460V
Approx. floor space: 32″ x 34″
Approx. weight: 2,200 lbs
