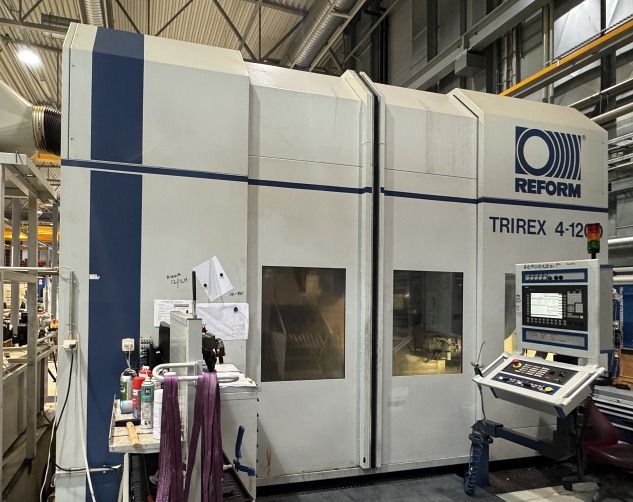

Reform TRIREX 4-1200

Rotary Table Diameter: 1200 mm
Swing Diameter: 1400 mm
X Axis Travel: 2300 mm
Z Axis Travel: 1550 mm
Feeds Z Axis: 0.2–1500 mm/min
Rapid Traverse Z Axis: 12 m/min
Feeds X Axis: 0.2–1500 mm/min
Rapid Traverse X Axis: 12 m/min
Swivel Range B Axis: ±180°
Control: Siemens 840D
Total Power Requirement: 110 kW
Machine Weight: 40 t
Machine Dimensions: 9 x 4.5 x 4.7 m

Features / Equipment
Multi-Spindle Head with 4 Stations
Spindle Stations 1–3: Spindle Size D=140x630 mm
Grinding Wheel Diameter (Stations 1–3): 200/400 mm
Adjustable Grinding Spindle Speed (Stations 1–3): 1500–4500 rpm
Drive Power (Stations 1–3): 15 kW
Spindle Station 4 High-Frequency Spindle
Maximum Grinding Wheel Diameter (Station 4): 230 mm
Adjustable Grinding Spindle Speed (Station 4): 2820/12000 rpm
Drive Power (Station 4): 25 kW
Station 5: Renishaw Touch Probe
