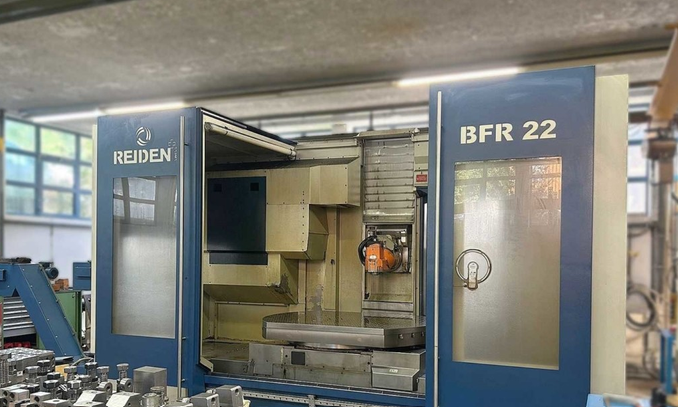

Reiden BFR-22 5 Axis
Ref :
2809470-3-AW
Condition :
Used
Manufacturer :
Reiden
Model :
BFR-22
Nb Of Axis :
5 Axis
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Feed travel X: 2100 mm
Axis travel Y: 1200 mm
Axis travel Z: 1400 mm
5-axis simultaneous
A/B swivel head: 2-axis
Rotary table diameter: 1700 mm
Maximum swing diameter: 1800 mm
Control: HEIDENHAIN iTNC 530
Tool changer: 92 positions
Tool taper: SK50 BIG PLUS
Maximum tool length: 600 mm
Maximum tool diameter: 250 mm
Maximum tool weight: 20 kg
Total connected load: 100 A
Double gripper
ITC
Chip conveyor
Probing system
NC rotary table
