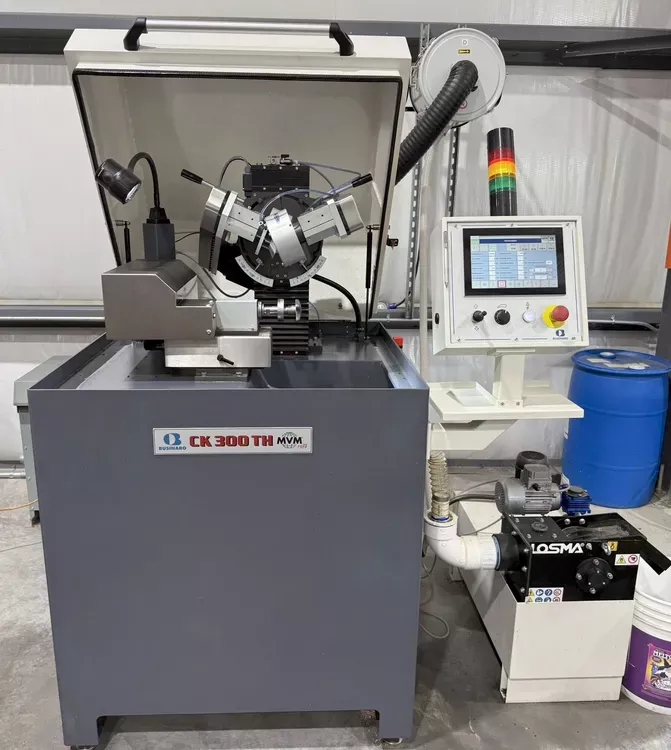

REKORD CK 300-TH

Two grinding heads for simultaneous bevel grinding up to 90°
Grinds single bevel knives from -10° to +70° bevel angles
Automatic knife rotation driven by geared motor at 14 RPM
PLC controlled
Cabin for full working area enclosure
Control board with 10” touch screen panel PC
Grinding of both bilateral bevels at once for burr-free finishing
Grinding of unilateral bevel
Grinding with emulsion or neat oil coolant
Electronically controlled variable speed of circular knife rotation
Easy adjustment for bevel angle
Lateral fine adjustment of knife position for cutting edge centering
Quick assembly of circular knife
Manual centralized lubrication
Adjustable LED lamp for working area lighting
Fully enclosed
Variable speed
Coolant system with magnetic separator
Darwin 600D mist collector
WiFi communications USB adapter with remote support hardware and software
Knife diameter range 40 mm – 350 mm (1.6” – 13.75”)
Maximum stroke up to 25 mm (1”)
Grinding motor 1 HP per motor
Grinding wheel diameter 125 mm
Grinding wheel bore 20 mm
Grinding wheel speed 4700 rpm
Voltage 480 V, 3-phase, 60 Hz
Shipping weight 500 kg (1100 lbs)
