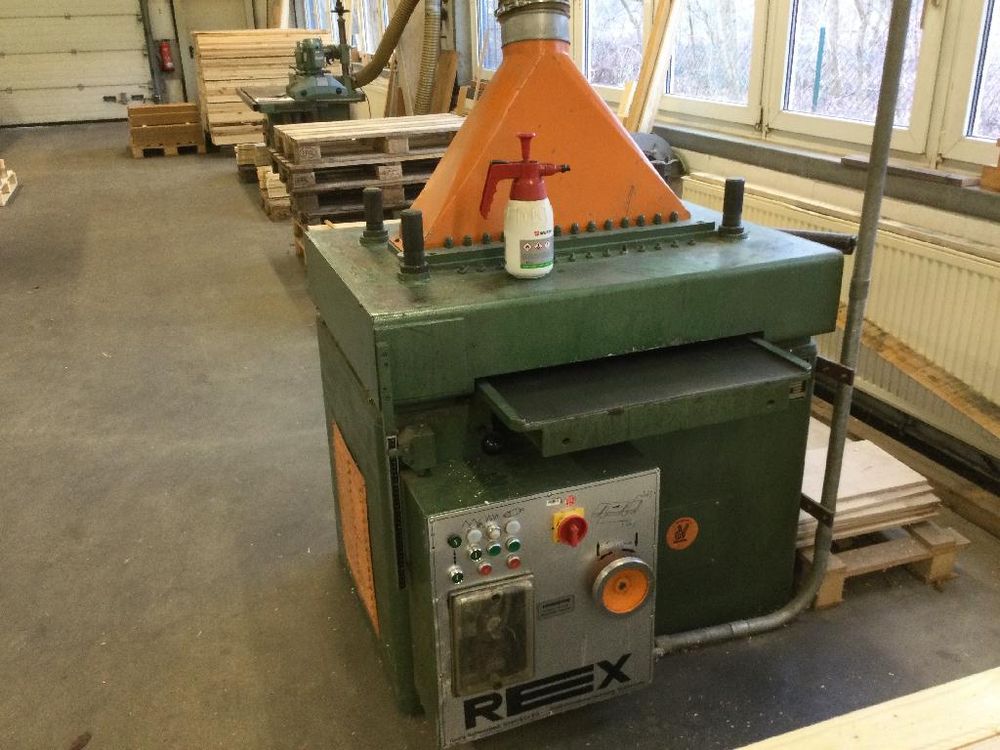

Rex HO 63

Thickness Planer - Constant ​​Planer
Constant table height 800 mm
4-column guide and adjustable upper section
Max. working width 630 mm
Min. working height 5 mm to max. 280 mm
4-knife wedge-shaped spindle
Knife cutting circle diameter = 140 mm
Knife spindle speed 4,500 rpm
Max. chip removal 10 mm
Feed speeds 8 + 16 m/min.
Thicknessing table length 1,200 mm with 2 sliding rollers in the thicknessing table
Motor 8.80 kW / 380 V / 50 Hz
Pole-changing feed motor 0.55 / 0.75 kW / 380 V / 50 Hz
Electric height adjustment motor 0.55 / 380 V / 50 Hz
Fine adjustment with 1/10 mm graduation
Precision thickness gauge with magnifying glass display
Driven feed roller D = 124 mm (top)
Driven discharge roller D = 124 mm (top)
Articulated pressure beam
Extraction nozzle D = 160 mm
Dimensions L 1,100 mm x W 1,215 mm x H 1,770 mm
Weight 1,350 kg
