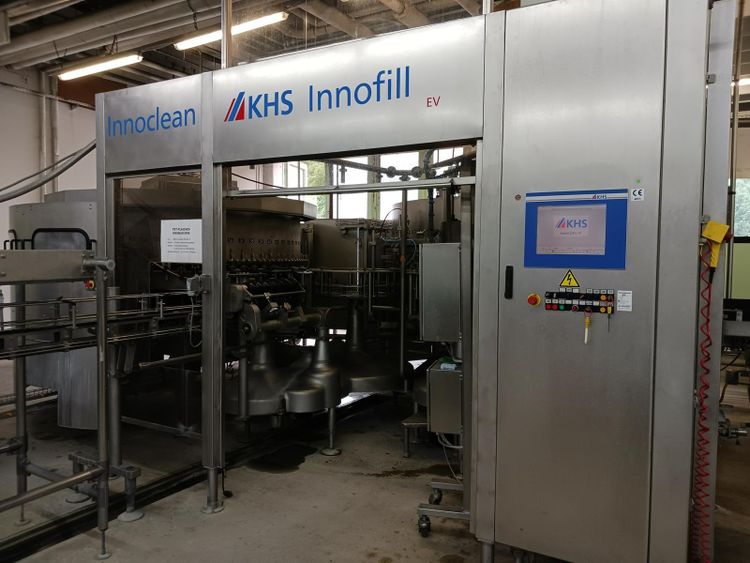

Rinsing, filling and sealing machine

Additional title: PET Bottle Sanitising and Filling System
Capacity: 24,000 bottles/hour
Supported formats:
0.5 L PET bottles
1.0 L PET bottles
1.5 L PET bottles
Running direction: Left → Right
Operation / Control system:
Touch Panel
Simatic S7
Material:
Mainly stainless steel
Installation position:
Free-standing
Features:
Stainless steel enclosure
Plexiglass protective screen opening upwards
70 rinsing valves on the rinser
80 filling valves
Filling quantity recording via IDM
Alcoa capper, 28 mm Bericap
Prominent chlorine dioxide dosing system
Filtration system for sterile water
Mobile liquid nitrogen dosing system
Pneumatic screw cap feed (approx. 25 m)
Two basements with a total capacity of three mesh box pallets for screw caps
