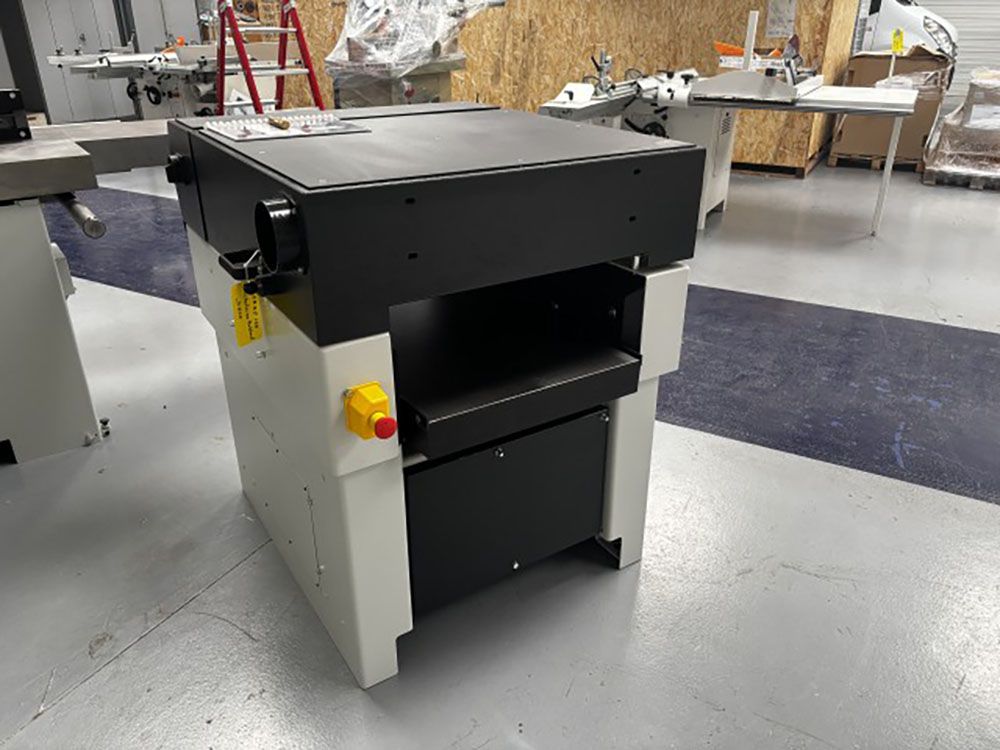

Robland D510

PLANER WITH ELECTRIC TABLE LIFT AND LOWER
MAKING CAPACITIES:
- Planing width: 510 mm
- Min/max working thickness: 3 to 250 mm
- Minimum working length: mm
- Max. infeed: 6 mm
- Spindle speed: 6000 rpm
- Feed speed: 5/8/10/16 m/min

MACHINE COMPOSITION:
- Mechanically welded steel frame
- Cast iron table (LxW): 1050x510 mm on 4 slides
- Electric lift and lower
Digital height indicator
- OPTIONAL INSTALLED Spindle TERSA Ø100 mm with 4 disposable blades
- Helical inlet pressure rollers / Smooth outlet pressure rollers

OTHER FEATURES:
- General machine power supply: 380V, three-phase, 50 Hz
- Automatic star-delta starting
- Main motor: 7 kW (9.5 hp)
- Drive motor: 0.55 kW
- Lift/lower motor: 0.12 kW
- Inlet suction: Ø120 mm
- CE marking
- Padlockable disconnect switch
Front/rear palm stops
Transport dimensions (LxWxH): 1100x1000xH.1100 mm
Weight: 540 kg
