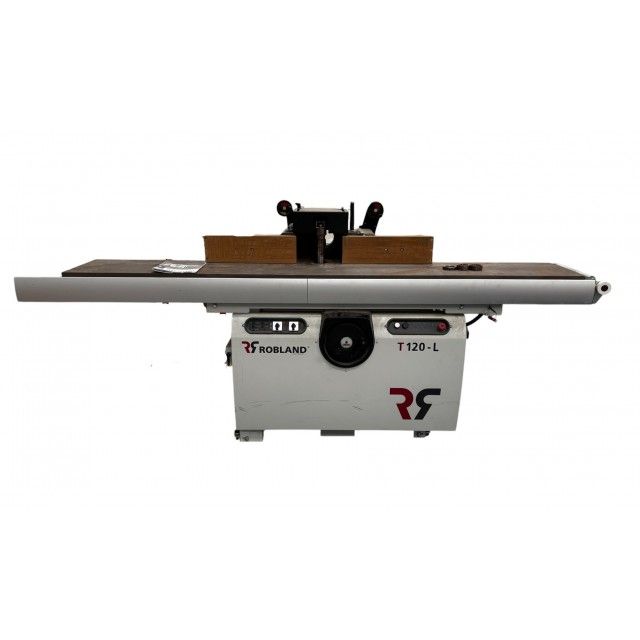

Robland ROBLAND ROUTER FORM WITH LONG TABLE

ROUTER CAPACITIES:
- Spindle Ø50 mm
Usable length (above the table) 180 mm
Vertical spindle travel 205 mm
- Rotation speeds 3000/4500/6000/7000/10000 rpm

MACHINE COMPOSITION:
- Mechanically welded frame
- Cast iron table (LxW): 1200x705 mm
Side extensions: 670x410 mm right and left (total length: 2540 mm)
Front table extension: 2720x630 mm
6 Table rings
Tools passing through the table: Ø320x95 h.
- Wooden side panels, h. 150 mm
Fine adjustment via rack and pinion on the cover (Syko type)
Maximum tool diameter for working with the guide: Ø260 mm

OTHER FEATURES:
- Power supply: 380V. Three-phase 50Hz
- Automatic star-delta starting
- Motor power: 6.6 kW or 8.15 hp
- Electric brake
- CE marking
Padlockable disconnect switch, palm stop
- Extraction on the router cover: Ø120 mm
Lower intake: Ø120 mm

Dimensions (LxWxH): 2700x1100x1300 mm
Weight: 660 kg
