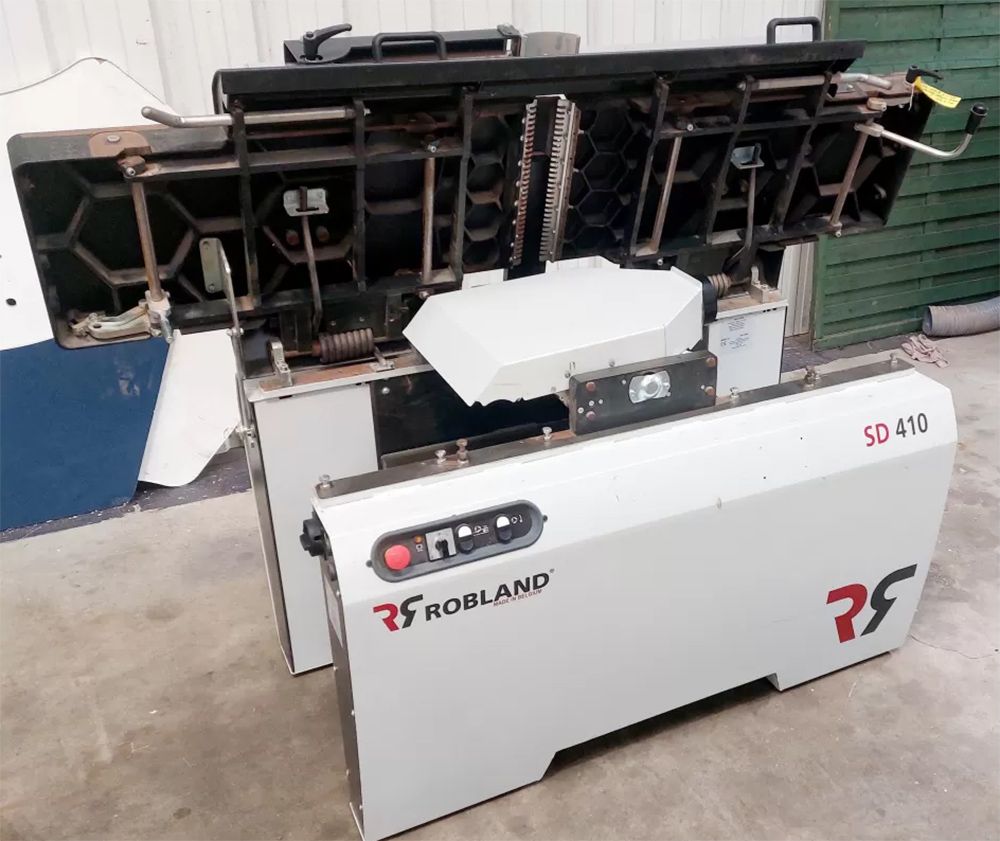

Robland SD 410

COMBINATION PLANER/PLANER WITH ELECTRIC ADJUSTMENT
MACHINING CAPABILITIES:
Jointer:
- Usable working width 410 mm
- Cast iron worktop, 2 m long
Noise-reducing lips
- Worktop height 86.5cm
- Continuously tiltable guide from 45 to 90° (W x H): 1350 x 200mm
- Maximum feed size 4 mm
- Shaft speed 6000 rpm
Planer:
- Maximum wood thickness height: 250 mm
- Cast iron table (LxW): 860 x 410 mm
- Electric and manual positioning for precision adjustments
- Training speed 6 m/min

OTHER FEATURES:
- 380V power supply. Three-phase 50 Hz
Installed power 5.35 kW
- 4.5 kW (6.12 hp) motor with automatic star-delta starting
- 90mm diameter shaft with 4 knives (blades): 410 x 25 x 3 mm
- Suction mouth Ø 120mm
- CE marking, lockable disconnect switch, front/rear emergency stop buttons, brake motor

Dimensions (LxWxH): 2 x 1.50 x 1.20 m
Weight 615 kg
