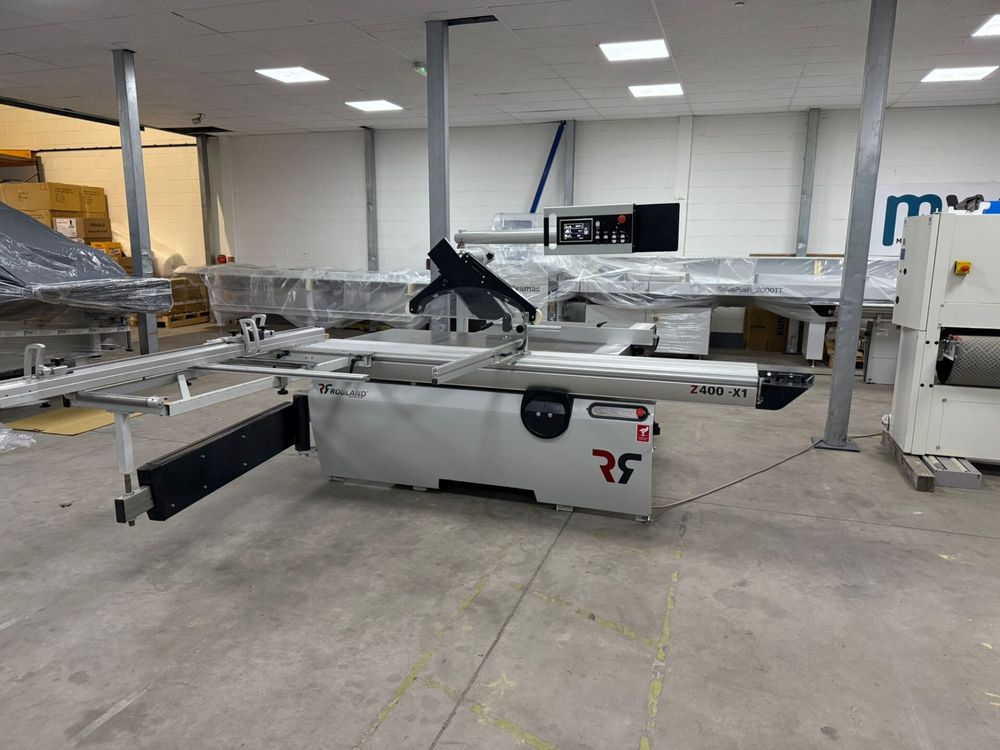

Robland Z 400-X1

Used Panel Saw
Electrical Main Blade rise and fall
Programmable CNC rip fence
Blade height and angle digital readout
Width and Length Extension supports on outrigger table
Digital readout on crosscut telescopic fence
Digital readout on crosscut flip stop
Scribe unit

Phase three phase / 400V
Max Diameter of Saw Blade and Bore 450 x 30mm
Cutting Depth at 90° / 45° : 150mm / 108mm
Saw blade tilting : 90° – 45°
Cutting Length : 3200mm
Dimensions Saw table Extension : 885 x 1125mm
Dimensions Sliding table : 3200 x 420mm
Length of crosscut fence : 1800mm (telescopic to 3000mm)
Scoring blade cutting depth: 3.5mm
Scoring saw motor power : 0.94kW
Motor Power : 5.5kW
Min Diameter of Saw blade : 199mm
Working Speeds : 3000 / 4000 / 5000 rpm
cutting width parallel / rip fence : 1300mm
Dimensions cat iron table : 985 x 710mm
Dimensions right hand table extension : 1000 x 710mm
Dimensions crosscut table : 760 x 1505mm
Diameter of Scoring blade and bore : 125 x 20mm
Scoring blade rpm : 8200 rpm
