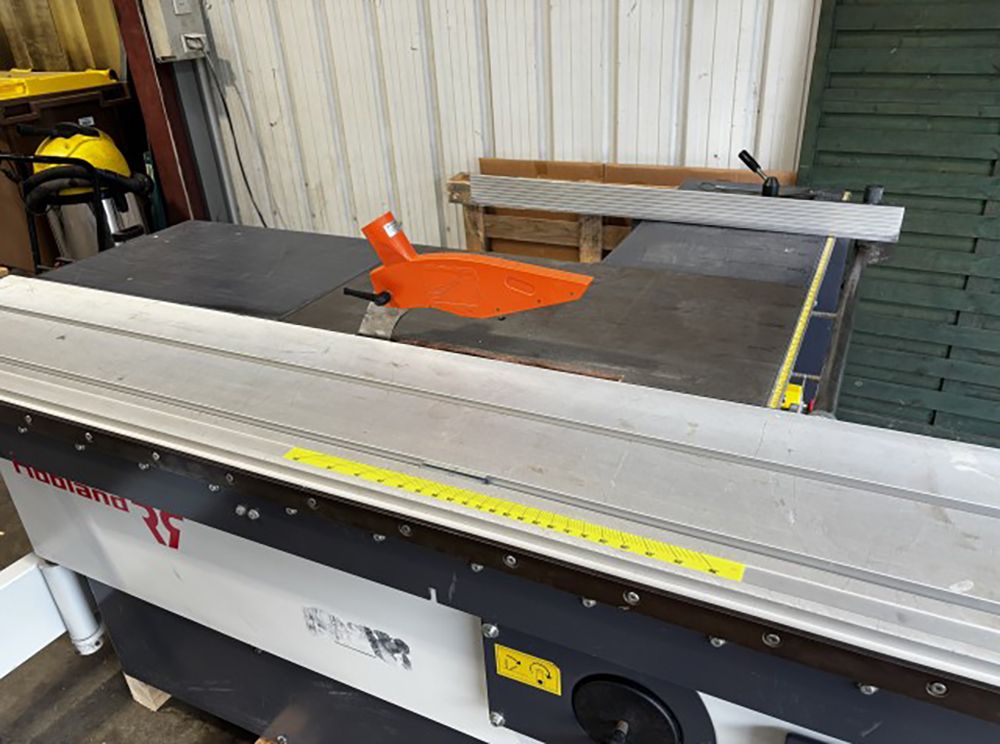

Robland Z3200

SECTION SAW WITH SCORTING BLADE, WITH 3.20M FLUSH-TO-BLADE CARRIAGE
MAKING CAPACITIES:
- Ripping length, carriage travel: 3200 mm
- Maximum cutting width at the rip fence: 1200 mm
- Squaring capacity (end cutting, crosscutting): 2500 mm
- Blades tilt 90° - 45°
- Blade speed: 4500 rpm
- Scoring saw speed: 8000 rpm

COMPOSITION:
- Mechanically welded frame
- Worktop height: 88 cm
Main table (WxD): 510x940 mm
Left side table extension (LxW) 780x510 mm
- Blade guard held on the riving knife
Upon request, we can install a jib, for an additional €1,000 excluding VAT.
- Saw blade max. Ø300 mm, bore Ø30 mm
- Scoring saw blade Ø80 mm, bore Ø20 mm
Manual blade and rip fence control
Retractable rip fence 1100x80 mm h.mm
- Sliding carriage flush with the blade 3200x390 mm, with handle Eccentric pressure and pusher
- Squaring table (Side frame) LxW: 1070x450 mm
Telescopic main ruler
2 retractable precision stops

OTHER FEATURES:
- 400V power supply. Three-phase 50Hz
- Manual star-delta starting
- Saw motor 3.7 kW (5 hp)
- Scoring motor 0.63 kW (0.9 hp)
Exhaust: Upper inlet Ø60 mm, lower Ø100 mm
- CE marked, Padlockable disconnect switch, Mushroom stops
Dimensions for disassembled transport (LxWxH): 3200x950x1200 mm
Weight: 590 kg
