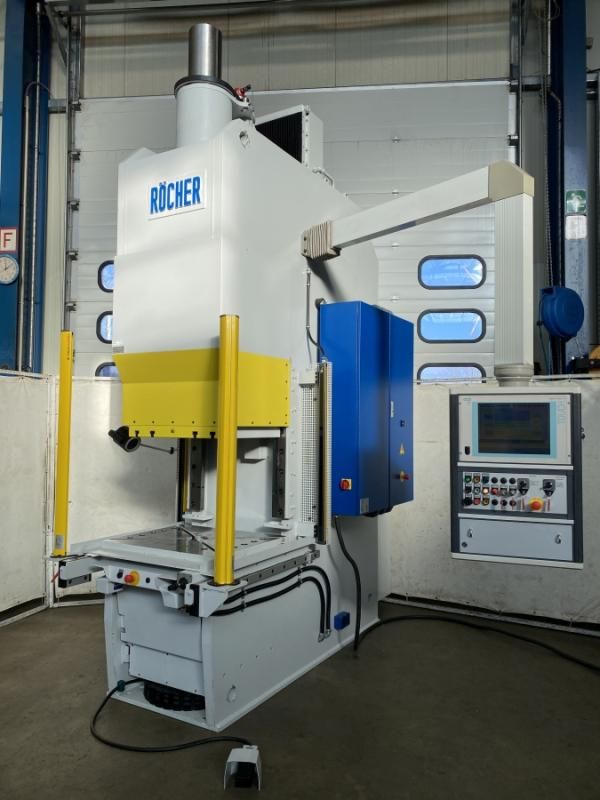

Rocher REP 100.01 SZ 100 ton

Press force: 100 ton
Ram stroke: 500 mm
Throat depth: 370 mm
Daylight opening: 600 mm
Table size: 850 x 700 mm
Table through hole diameter: 150 mm
Ram face: 700 x 600 mm
Ram ejector force: 16 ton
Ram ejector stroke: 100 mm
Ram ejector internal thread: M24 x 1.5 mm
Cushion force: 40 ton
Cushion stroke: 200 mm
Cushion surface: 530 x 530 mm
Dwell time: 0–90 sec
Table height above floor: 910 mm
Hydraulic operating pressure max: 300 bar
Hydraulic tank capacity: 700 L
Rapid approach speed: approx. 400 mm/sec
Pressing speed up to 23.8 ton: 5–68 mm/sec
Pressing speed up to 100 ton: 5–16 mm/sec
Return speed: 50–400 mm/sec
Main pump motor power: 18.5 kW
Auxiliary pump motor power: 4 kW
Power supply: 400 V, 50 Hz
Operation and programming via PC 670 touch panel with keyboard and mouse
Machine control Siemens S7-300 PLC
Programmable ram stroke and press force
Cushion with draw and ejector function
Infinitely adjustable cushion force
Direct position measuring system on ram and cushion
Retractable cushion below press area
Pressure and position shut-off
Fixed stop with indirect measuring system
Programmable dwell time
Table with holes for cushion push rods
Ram with ejector
Cutting shock damping
Two-hand control
Foot switch
Hand lever control
Control panel push button
Light curtain safety device
Adjustable front mirror columns on press table
Electrical cabinet mounted on machine frame
Hydraulic oil cooler air-cooled
Manual central lubrication pump
Two hose connections for tool temperature control or cooling on ram
Part counter in control
Operating hours: 306
Overall dimensions L x W x H: 3100 x 1800 x 4160 mm
Machine weight: approx. 13 ton
