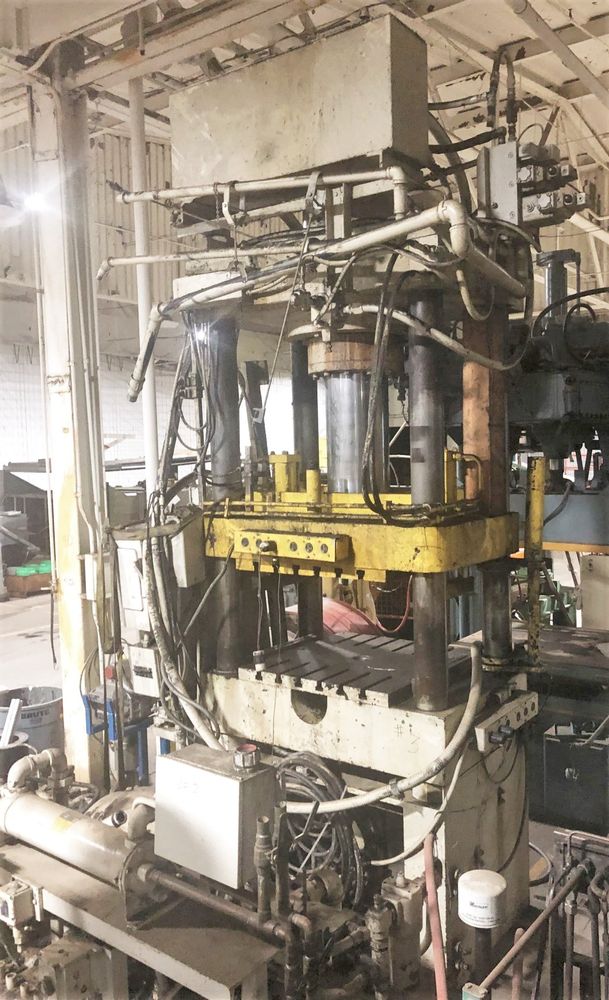

Rodgers DWG 2283 220 Ton

Max. Capacity: 220 Ton @ 1700 PSI
Max. Stroke: approx. 18"–24"
Max. Daylight to Bed: 48"
Daylight Between Bolsters: 43.5"
Overall Bed & Ram Area: 58" x 36"
Bed Hole: 3.5"
Distance Between Posts: 42" x 21"
Usable Bed Area: 42" x 36"
Bolster Plate Size: 36" x 35"
Bolster Plate Thickness: 2.25"
Floor to Bed: 51.5"
Post Size: 6" diameter
Cylinder Bore: approx. 18" diameter
Press Controls: Relay Logic Controls
Hydraulic Pump: Vickers PVE27L 2 22 C25V 21
Motor Power: 50 HP
Electrical: 220/440-380V-3-60
Electrical Current: 124/62-75 Amps
Overall Dimensions: 84" x 72" x 168"
Machine Weight: 40,000 lbs
Bottom Transfer Cylinder: 12" Stroke
Top Ejector
Bottom Ejector
Mold Heaters Top
Mold Heaters Bottom
Floor Standing Base
Safety Latch on Ram
