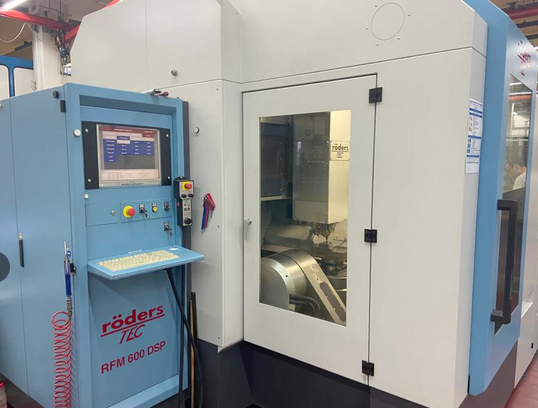

RÖDERS RFM 600 DSP 5 Axis
Ref :
2799970-3-MT
Condition :
Used
Manufacturer :
-
Model :
RÖDERS RFM 600 DSP
Nb Of Axis :
5 Axis
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 600 mm
Y-axis travel 500 mm
Z-axis travel 300 mm
5-axis simultaneous machining center
Rotary table diameter 405 mm
Table load max 300 kg
Control Roeders RMS6
Tool magazine 82 positions
Spindle taper HSK E40
Spindle speed 0–42000 rpm
Rapid traverse 60 m/min
Spindle runtime 7266 h
Spindle replaced 2016
Coolant system
Water cooler
Touch probe
Laser tool setting system
Chip conveyor
Workpiece magazine 31 setup positions
Electronic handwheel
Machine lamp
Total power 25 kW
Voltage 400 V, 50 Hz, 3-phase
Machine weight approx. 8500 kg
Machine dimensions 4200 × 3000 × 2700 mm
