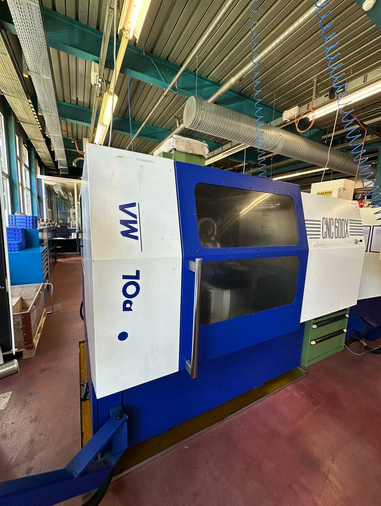

Rollomatic CNC 600 X

Cross Axis Travel (W axis): 600 mm
Longitudinal Axis Travel (U axis): 600 mm
Vertical Axis Travel: 150 mm
A Axis: -15° / +90°
B Axis Swivelling Range: -130° / +45°
C Axis: Not specified
Control: FANUC 16i-M
Max Grinding Length: 150 mm
Grinding Diameter: 0.1 – 12.7 mm
Max Grinding Wheel Diameter: 150 mm
Spindle Taper: W15
Grinding Spindle Speeds: Stepless 2,000 – 7,200 t/min
Grinding Spindle Motor: 14.5 kW
Voltage: 3x 380 V, 50 Hz
Machine Weight: 3,500 kg
Overall Dimensions: L2060 × W2032 × H1880 mm
Adjustable Projector
