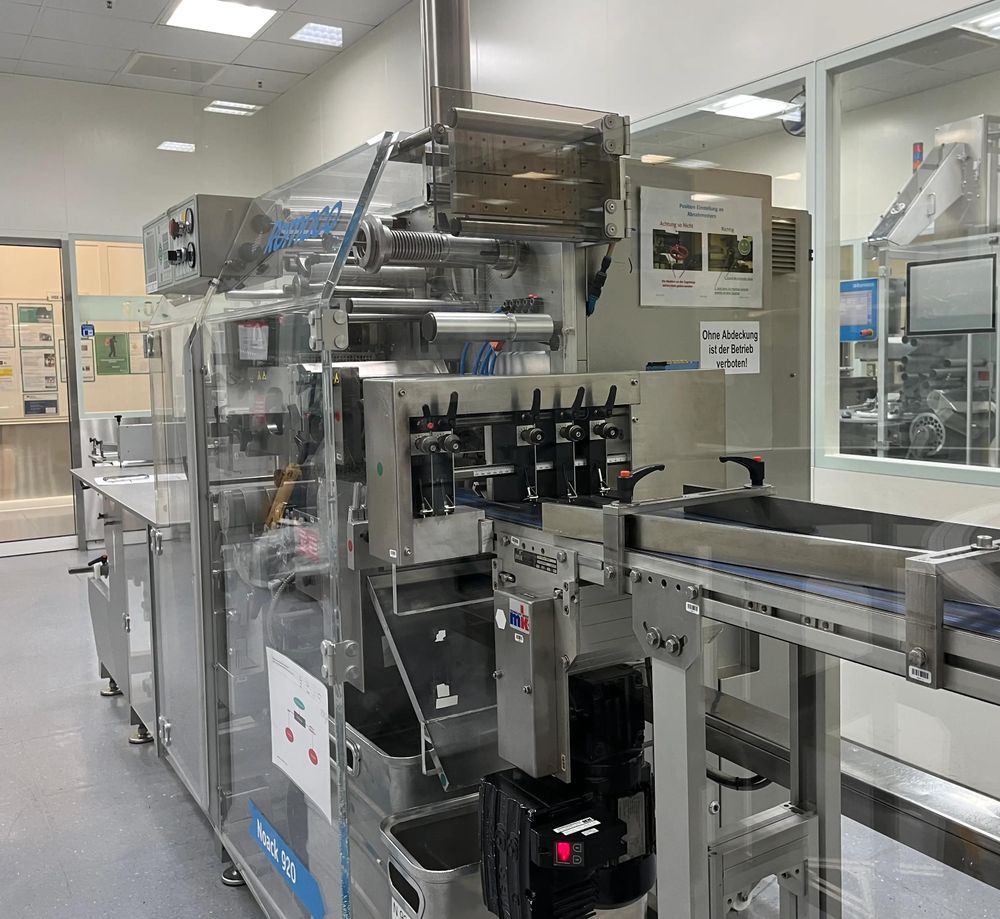

Noack, Romaco N920 + C150 + PEWOPACK250 + CT2000 Blister Line

Full cGMP compliance
XML control with touchscreen operator panel
Easy integration of online printing and security systems
For tablets, capsules, softgel capsules, capsules

PRODUCTION CHARACTERISTICS
Blister production: 500/min (max)
Film width: 210 mm (max)
Film forming roll diameter: 700 mm (max)
Coating film roll diameter: 280 mm (max)

Forming depth: 12 mm (max)
Forming cycles: 100/min. (max)

UHLMANN CARTONER, MODEL C150
Operating mode: Intermittent
Application: Blister packs
Pitch: 5 inches
Closure types: Tuck-in and hot-melt seal


PRODUCTION CHARACTERISTICS
Max. output: 150 cartons/min.
Max. carton size: 100 x 85 x 150 mm
Max. number of blister packs: 10
Max. blister stack height: 80 mm

PESTER PEWO PACK WRAPPER
MODEL PEWO PACK 250
Cycle rate: up to 80 packs/min
Min./max. bundle dimensions: 60 x 30 x 60 mm; 360 x 180 x 250 mm

Film width: min.: 50 mm - max.: 250 mm
Film thickness: min.: 25 μm - max.: 100 μm
Roll diameter: max.: 300 mm

ENERGY CONSUMPTION
Power supply: 3x400V + N + PE / 50Hz.
Operating pressure: 5 bar
Suitable films: PE material

CHRIST WRAPPING MACHINE, MODEL CT2000
ENERGY CONSUMPTION
Operating voltage: 1x230 V/50 Hz
Control voltage: DC 24 V
