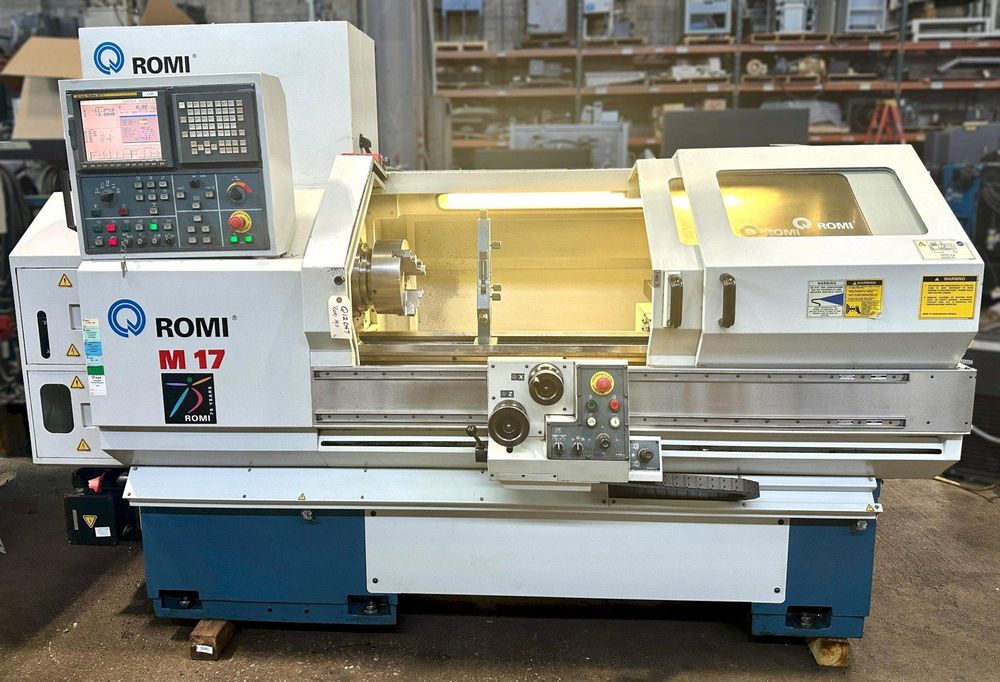

Romi Fanuc 21i-T 3,000 RPM M17 2 Axis

ROMI M17
2005

CNC control: Yes
CNC type: Fanuc 21i-T
Max swing over bed: 16.9"
Max swing over carriage: 15.7"
Max swing over cross slide: 8"
Chuck size: 10" 3-jaw
Max distance between centers: 40"
X-axis travel: 8.7"
Z-axis travel: 40"
X-axis rapid traverse: 395 IPM
Z-axis rapid traverse: 295 IPM
Spindle nose: A2-6
Spindle bore: 2.56"
Spindle speed range: 3 – 3,000 RPM
Spindle horsepower: 10 HP
Tailstock quill travel: 4.7"
Tailstock quill diameter: 2.4"
Tailstock quill taper: 4 CM
Electrics: 240/3/60
Machine dimensions: 108" x 50"
Machine height: 77"
Machine weight: 6,285 lbs
Fanuc 21i-T CNC control with 10.4" color LCD
Apron with dual electronic handwheels (X & Z)
4-position joystick for X and Z rapid traverse
Spindle control lever for manual mode
Automatic lubrication system
Rigid cast iron H-bed design
Hardened and ground ways
Tailstock with manual quill and dual-position clamps
Coolant system
Removable chip box
RS-232 port
Variable speed spindle with 2 gear ranges
4.25" capacity steady rest
Coolant pump and tank
Condition stated as excellent
