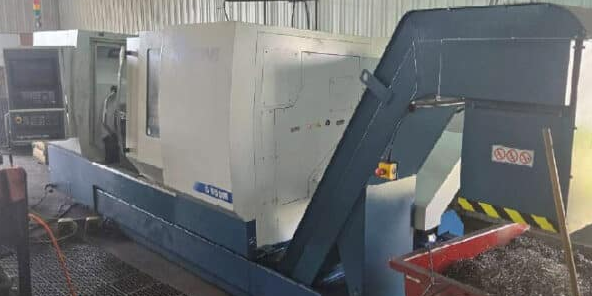

Romi SIEMENS 828D CNC 2,000 RPM G550M 2 Axis

Swing over Z axis cover: 27 in
Maximum cutting diameter: 21 in
Maximum cutting length: 51 in
X axis travel: 11 in
Z axis travel: 53 in
Spindle nose: A2‐11 in
Spindle thru‐hole: 5.6 in
Direct drive spindle
Spindle speed range: 2 – 2,000 RPM
Rapid traverse X axis: 787 IPM
Rapid traverse Z axis: 944 IPM
Turret positions: 12
Tool holder type: BMT‐75
Driven tool speed range: 3 – 3,000 RPM
Control: SIEMENS 828D CNC
Longitudinal hinged belt chip conveyor (TCE)
Coolant pump
Hydraulically operated chuck: 15.35 in
Status light indicator
Tool setter: A2-8 in / A2-11 in (#5)
Oil skimmer disc type with residue collection box
Foot switch for hydraulic chuck
