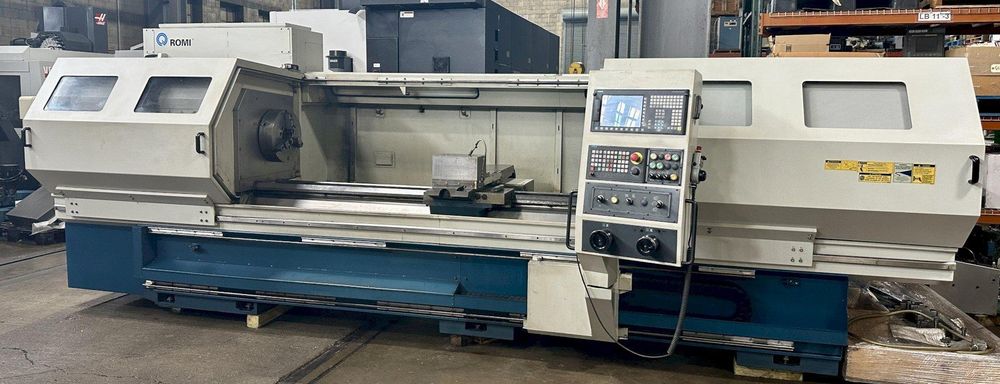

Romi Siemens Sinumerik 828D 1,800 RPM C680 2 Axis

ROMI C680
Year: 2015

CNC control: Siemens Sinumerik 828D
Max swing over bed: 26.8"
Max swing over cross slide: 16.9"
Max swing over saddle wings: 24"
Chuck size: 19" 4-jaw and 16" 3-jaw
Max distance between centers: 118"
Max turning length: 119.1"
X-axis travel: 14.2"
Z-axis travel: 119.1"
X-axis rapid traverse: 315 IPM
Z-axis rapid traverse: 315 IPM
Spindle nose: A2-11
Spindle bore: 6.77"
Bar capacity: 2.55"
Max spindle speed: 1,800 RPM
Spindle power: 45 HP
Tailstock quill travel: 7.1"
Tailstock quill diameter: 5.1"
Electrics: 480V / 3 Phase / 60 Hz
Machine dimensions: 303" x 96"
Machine weight: 15,400 lbs

Siemens Sinumerik 828D CNC control
16" 3-jaw chuck
19" 4-jaw chuck
Two-sided Dorian tool post
16" max diameter steady rest
Heavy duty flat bed construction
Low gear 1–450 RPM
High gear 1–1800 RPM
2.55" spindle through hole
Handwheels for X and Z axis
Rapid traverse joystick for X and Z axis
Chip conveyor
Coolant system
Foot pedal for chuck clamp/unclamp
Foot pedal for quill in/out
Spindle chiller
