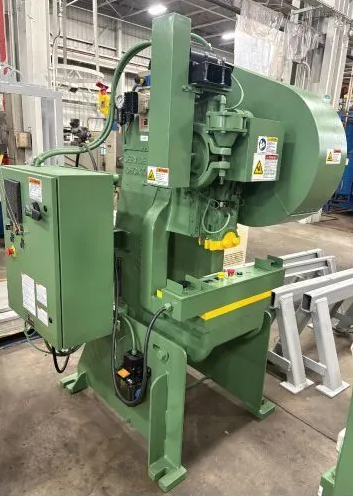

Rousselle 3F

Press force 25 ton
Stroke length 2 in
Slide adjustment 2 in
Shut height over bed 10.75 in
Shut height over bolster 9.25 in
Bed area (L-R × F-B) 20 × 14 in
Bolster thickness 1.5 in
Hole in bed (L-R × F-B) 12 × 7 in
Die shank hole diameter 1.562 in
Throat depth 7.5 in
Opening width through back 13.5 in
Incline angle 30°
Floor to bed height 32.75 in
Floor to bolster height 34.25 in
Maximum speed 135 strokes/min

OBI type Single
Air clutch Yes
Motor power 2 hp
Control Link 5100 MPC
Automatic oil lubrication system
Dual palm buttons
Top stop
Inch / single / continuous modes
Machine dimensions 34.5 × 42.5 × 82 in
Machine weight 2,500 lb
