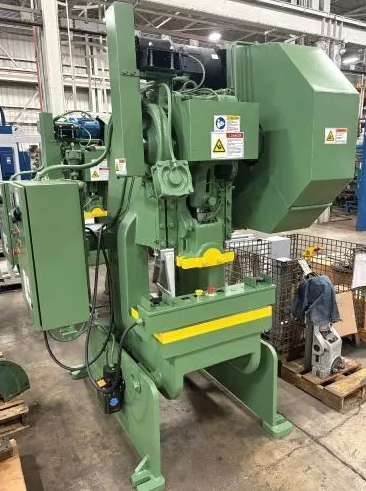

Rousselle 4F 40 ton

Press force 40 ton
Stroke length 3 in
Slide adjustment 3.5 in
Shut height over bed 12 in
Shut height over bolster 10.25 in
Bed area (L-R × F-B) 26 × 16 in
Bolster thickness 1.75 in
Hole in bed (L-R × F-B) 14.5 × 10.5 in
Die shank hole diameter 2 in
Throat depth 9.5 in
Opening width through back 16 in
Incline angle 30°
Floor to bed height 30.75 in
Floor to bolster height 32.5 in
Maximum speed 105 strokes/min
OBI type Single
Air clutch Yes
Motor power 3 hp
Control Link 5100 MPC
Automatic oil lubrication system
Dual palm buttons
Top stop
Inch / single / continuous modes
Machine dimensions 39 × 55.5 × 91 in
Machine weight 4,300 lb
