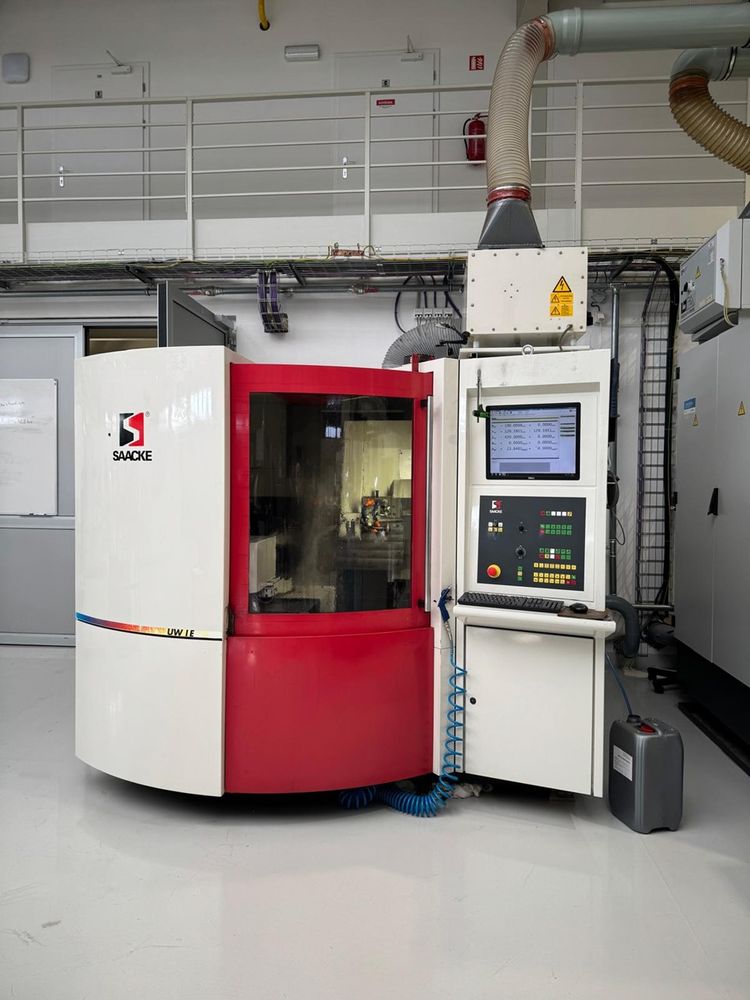

Saacke UWIE

Software: NUM 4.2.1
Number of axis: 5
X-Axis travels: 340 mm
Travels Y: 240 mm
Z-Axis travels: 840 mm
Maximum spindle speed: 10000 1/min
Machine weight: 3900 kg
Max tool diameter: 250 mm
Tool length during complete machining: up to 330 mm
Workpiece clamping: hydraulic clamping system
Taper: 50 DIN 69 871 L140 D32
All linear axes are driven by ball screws
OPTIONS:
Milling cutter production
Form/profile cutters based on DXF contour
Drill / step drills
Dell Precision T1650
Intel Core i5 – 3470 CPU 3.20 GHz
32-bit
Windows 7 Professional
Keyboard and mouse
