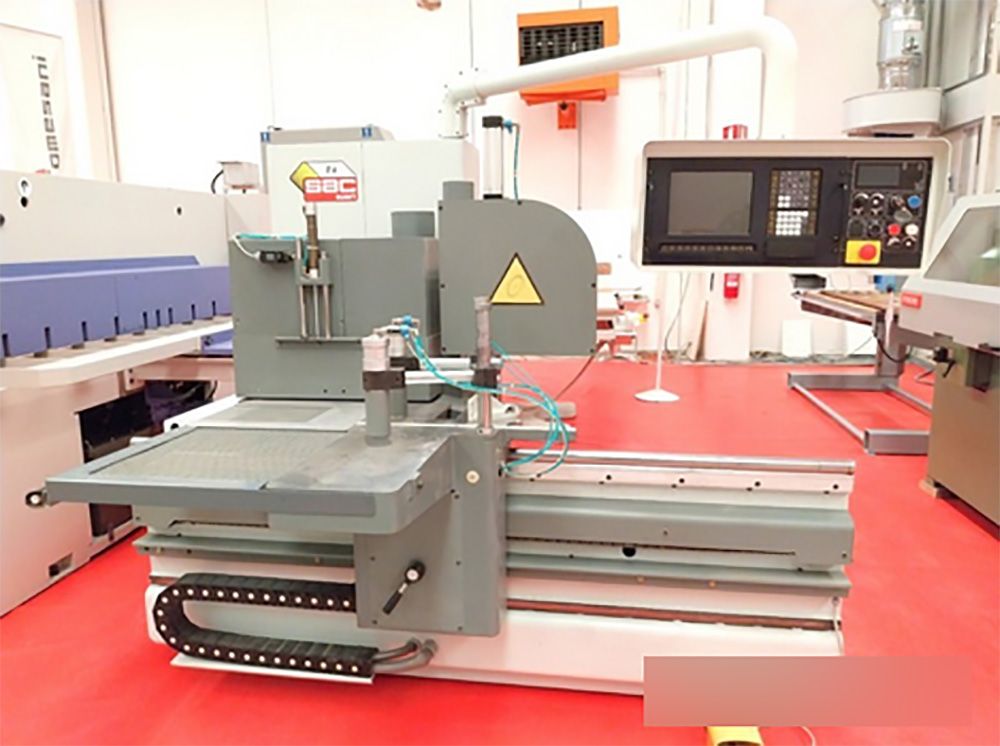

Sac T 4 Electronic tenoning machine

Electronic tenoning machine for wooden frames, doors, cabinet doors, furniture, and various - CE Standard
Technical data:
End trimming saw with continuous axis positioning
Horizontal stroke 130 mm
Motor power 3,2 Kw
Blade diameter 400 mm Hole 30
Tenoning spindle - Spindle length 320 mm
Spindle diameter 50 mm
Motor power 5,5 Kw
Continuous axis positioning - Max tool diameter 350 mm
Tenoning carriage table size 750 x 900 mm
Motor power 1,1 Kw
Working speed 3/10 mt/min
Positioning speed 30 mt/min
Tilting guide
Guide with stop and display

Min workpiece height 30 mm
Max workpiece height 90 mm
Min workpiece width 30 mm
Max workpiece width 600 mm
Min/max workpiece length 200/3000 mm
Max tenoning depth 130 mm
Max squaring width 1000 mm
Electronic control of all machine functions
Alphanumeric keyboard
Monitor LCD 9,5"- 800 storable programs
Free programming by the operator
Sequential work programs
Suction port diameter mm 100/160
Overall dimensions mm 2250 x 1800 x 2050 h
Weight kg 1800
