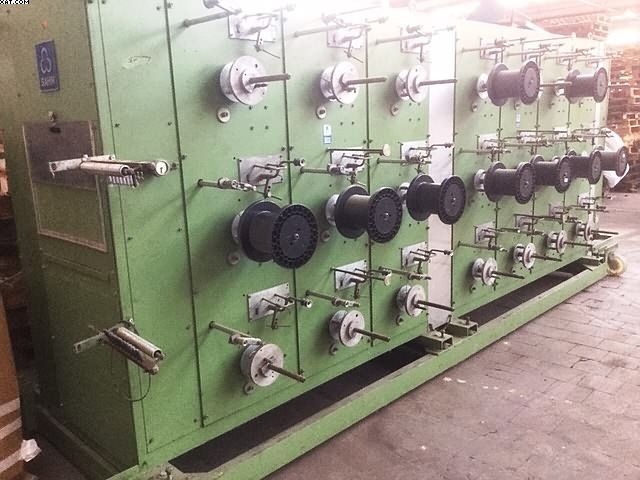

Sahm Winders 211 E

SAHM Model 211 E Winder, 36 positions, 2002 yr.
Length of the machine 425 cm
3 x 400v, 50 Hz
Installed power 8,5 KVA - 0,212 KVA needed per winder
Yarn range: monofilaments from 0,08 - 2,0 mm diameter (  70 - 33,00 dtex )
Speed: max. 300 m/minute
Traverse: from 160 mm up to 335 mm
Maximum diameter of the bobbins: 355 mm
Maximum bobbin weight 10 kilos

SAHM Model 211 E Winders, 42 positions, 1996 yr.
For monofilaments from 0,08 up to 2,0 mm diameter ( 70-33,00 dtex ).
Traverse: from 160 mm up to 335 mm.
Speed: max. 300 m/minute
Max. diameter of the bobbins 355 mm
Max bobbins weight: 10 kilos
Length of the machine 500 cm
3 x 480v, 60 Hz
Installed power 25,4 KVA

Uses K355 flanged bobbins.
New bobbins can be purchased separately.
