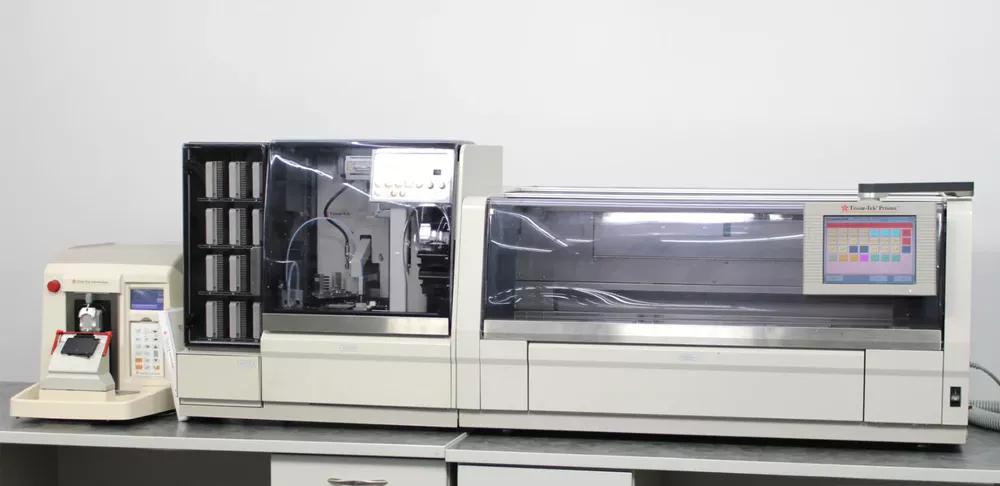

Sakura Tissue-Tek Prisma-A1D Stainer Glas g2 Coverslipper AutoSection Microtome

Application
Histology, Cytology, Special Staining, Advanced Staining

Throughput
Up to 400 slides/hour

Configuration
Benchtop

Integrated staining via Link
Tissue-Tek Prisma® or Tissue-Tek Prisma® Plus, using the Link Between Tissue-Tek Prisma® and Tissue-Tek® Glas™ g2 (6168)

Load capacity
3 baskets into the load station

Unload capacity
12 baskets (240 slides in the unload station)

Mounting medium
16 oz. xylene-base

Fume filtration
Activated Carbon Filters on-board
Optional external vent connection

Slide size
1 x 3 inches (25 x 75 mm)

Coverslip reusable holders
40, 50, 55, or 60 mm

Acceptable dimensions of coverslips
24 x 40 mm, 24 x 50 mm, 24 x 55 mm, 24 x 60 mm
25 x 40 mm, 25 x 50 mm, 25 x 55 mm, 25 x 60 mm

User interface display
LCD, 4 lines (20 characters each), 2 LED’s

LIS connectivity
Optional barcode reader (6508)

Operating temperature
10 to 40°C (50 to 104°F)

Certifications
IEC 61010-1 2nd ed., CAN/CSA C22.2 No. 61010-1, UL 61010-1

Regulatory status
IVD, FDA Class I

Power rating
115V ± 10%, 50/60Hz, 2.2A, Single phase

Dimensions (W x D x H)
29.5 x 24.4 x 29.5 in (75 x 62 x 75 cm)

Weight
242 lb (110 kg), without reagents
