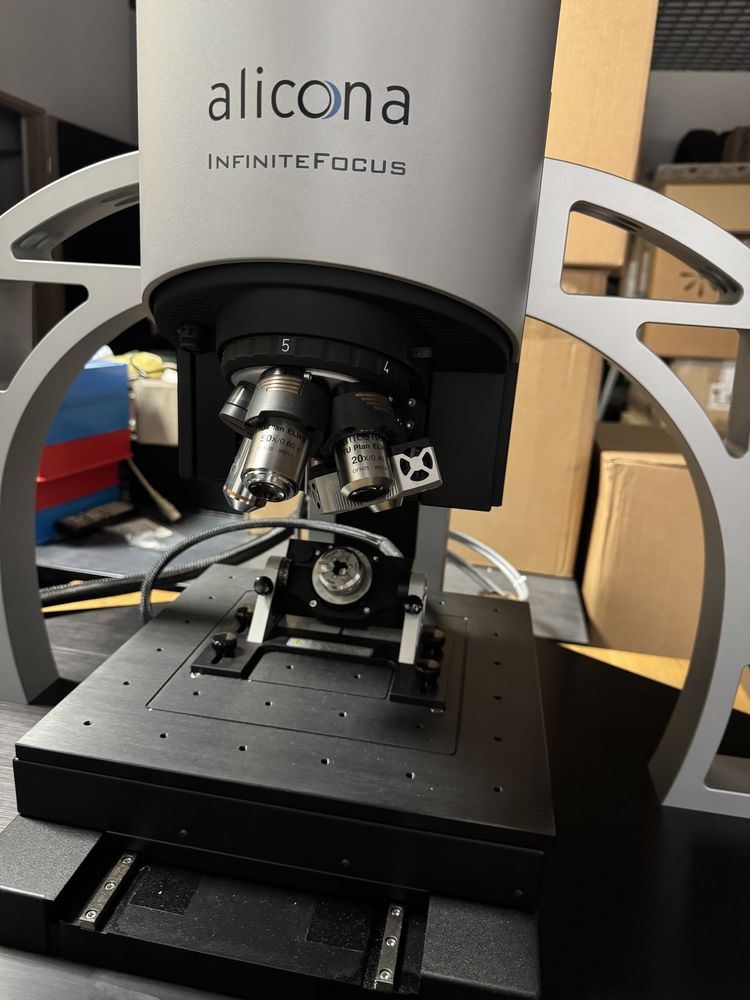

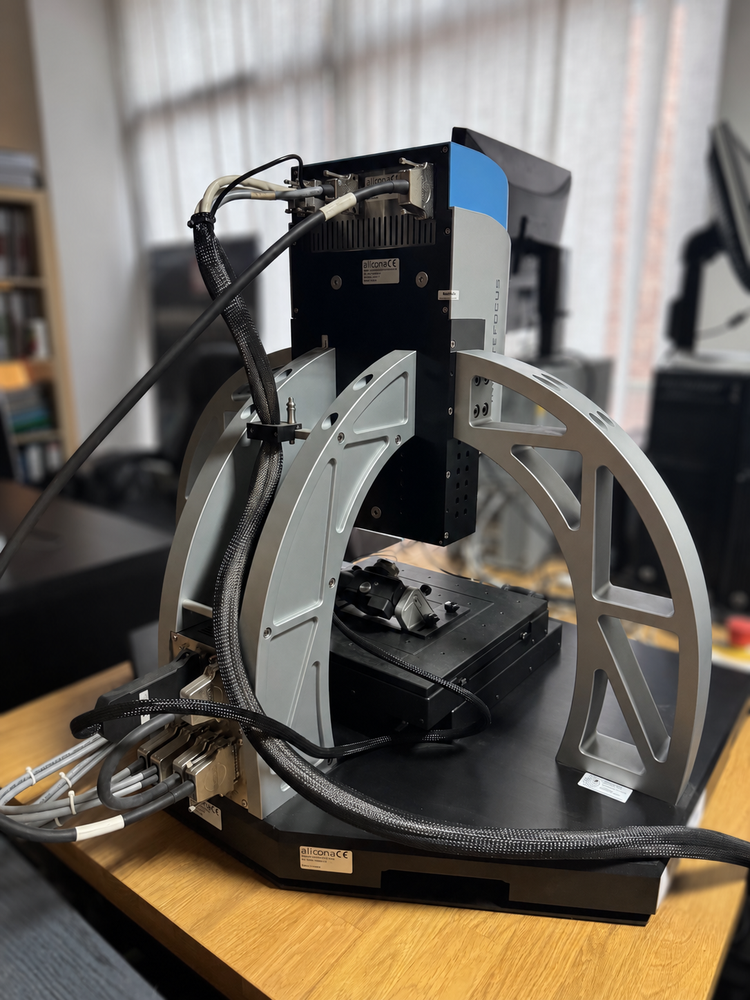

Other Alicona InfiniteFocus G5 Used 3D optical metrology microscope in an excellent condition

Listed price is without VAT.

Year of manufacture: 2016

In an excellent condition. It has been used in scientific research.

Complete industrial measurement system with 5x / 10x / 20x / 50x objectives.

Key technical specifications
- Motorized Z travel: 100 mm
- Motorized XY travel: 100 × 100 mm, high precision
- Motorized nosepiece: for 6 objectives
- Integrated digitally controllable polarization option

Included equipment:
- IF-RibSet hardware:
- 64-bit high-speed control server
- 24-inch monitor, joystick, mouse and keyboard
- software modules:
- IF-LaboratoryMeasurementModule for 3D data acquisition
- IF-MeasureSuite graphical user interface and measurement database
- Measurement modules for:
- profile form measurement
- profile roughness measurement
- surface texture measurement
- volume measurement
- 2D image measurement
- automation
- Alicona Inspect module for geometric difference and tolerance measurement
- Edge Measurement Package — includes cutting edge radius, form, chipping, chamfer, contour and multi-edge measurement

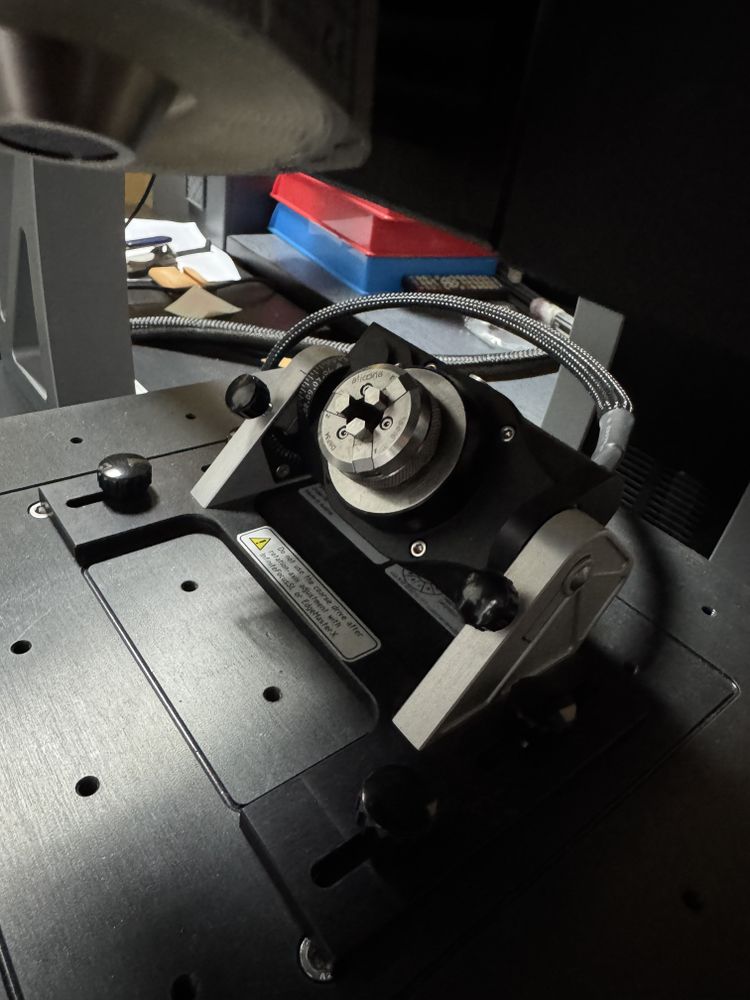

- IF-Real3DRotationUnit G2 — motorized rotation unit with manual tilt axis and three-jaw collet system
- RinglightHP — digitally controlable white LED ring light, 24 segments, 56 LEDs

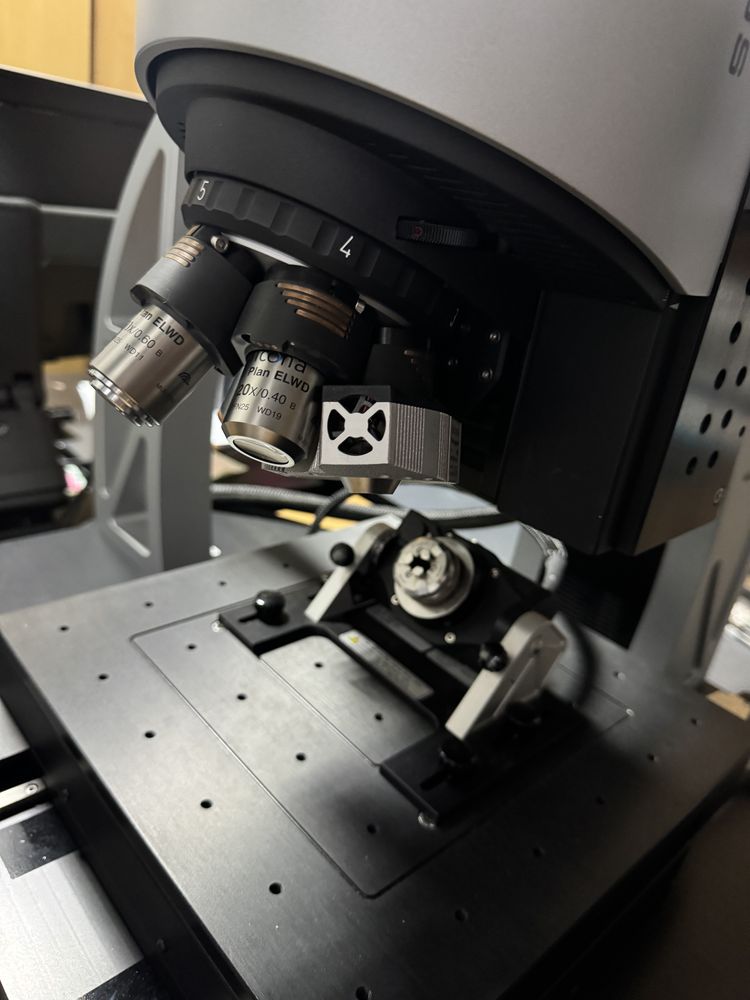

- Objectives included:
- 5x, working distance 23.5 mm
- 10x, working distance 17.5 mm
- 20x, working distance 19.0 mm
- 50x, working distance 11 mm.

Designed for 3D surface measurement, roughness measurement, tool edge inspection, micro-geometry measurement, wear analysis and precision quality control. The system is suitable for metrology laboratories, tool manufacturers, aerospace, automotive, medical device production, R&D centres and universities.

Inspection and test before purchase are possible.
