Other Protein purification system

Protein purification systems are mainly applied in the field of biopharmaceuticals such as monoclonal antibodies, recombinant proteins, vaccines, biochemical drugs, antibiotics, natural products and polysaccharides. Used for the separation and purification of downstream processes of biological products.

Modular design offers multiple configurations to meet the requirements of special process flows
Equipped with high-precision double-plunger infusion pumps, it ensures excellent separation reproducibility.
All parts of the system that come into contact with liquids are composed of biocompatible materials and comply with relevant regulations such as FDA and USPVI.
The DAD detector avoids the instability and high failure rate brought by the traditional mechanical switching detector.
The fixed-wavelength detector lamp is a long-life LED lamp with a lifespan of over 8,000 hours, reducing maintenance costs.
It features pre-column, post-column, differential pressure alarm, bubble sensor detection and other functions, which greatly protect the safety of the system and the chromatography column.

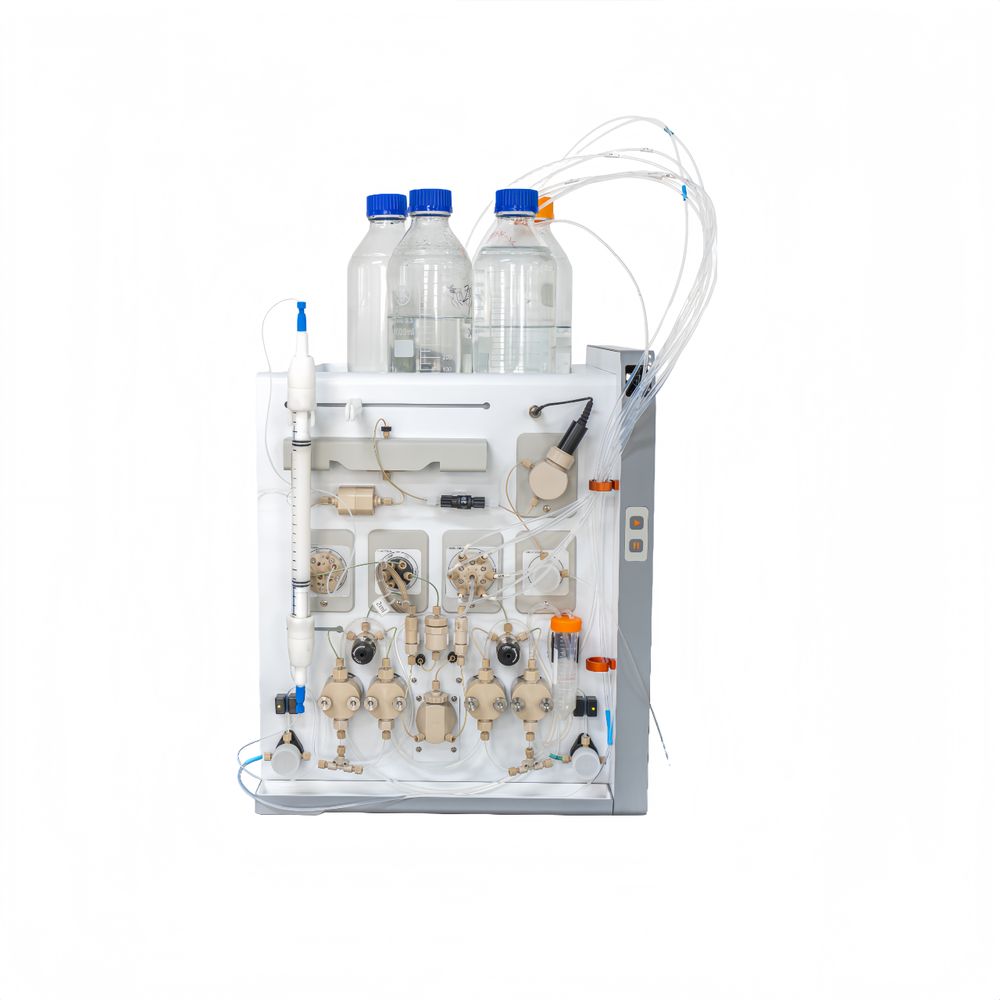

Model: FPLC300

Host standard configuration
Pump: Dual-pump system
Flow rate range: 0.01-300ml/min
Gradient type: Linear, isocratic, stepped gradient
Automatic injection valve: Software control, supporting Load, Inject, and Waste functions
DAD detector: Wavelength range: 185-40nm. Channel: 4 wavelengths
Temperature sensor: Reading range: 0-100℃ Temperature compensation can be provided for conductivity and pH
Conductivity detector: Detection range: 0.01-999.99mS/cm, including temperature compensation
Adjustable back pressure valve: 0.2±0.05MPa
Online filter: 20μm PP filter
Control software: Chinese and English control software

Optional
UV detector: Deuterium light source 185-400 four wavelengths(Xenon lamp source)
Buffer inlet valve: Both A and B pumps can be optionally equipped with 2, 6 or 8-channel inlet valves
Outlet valve: Optional 2, 6, and 8-channel large-volume collection valves are available
Component collector: Supports 96-well plates, 13mm, 16mm and 30mm standard test tube racks
Column position valve: Single-column valve, three-column valve, four-column valve
Pressure monitoring: System pressure, Pre-column pressure and post-column pressure are optional
Sample pump: Flow rate optiona: 25ml、150、300ml/min. Optional 2, 6, 8 channel inlet valve
