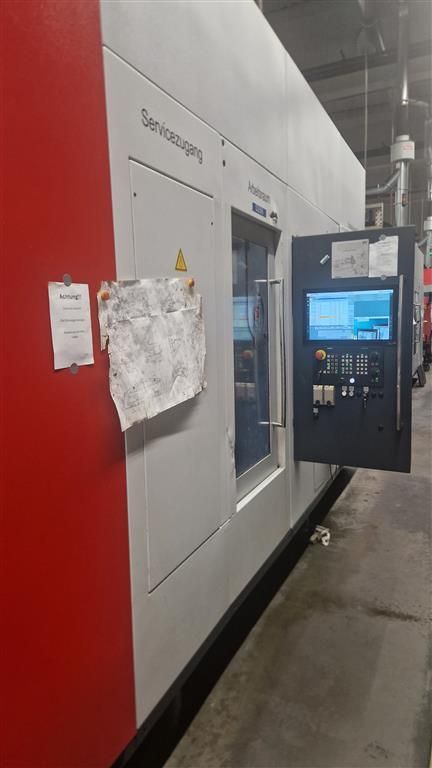

Samag MFZ 8.3 5 Axis

X Axis Travel: 600 mm
Y Axis Travel: 700 mm
Z Axis Travel: 520 mm
A Axis Swivel-Rotary Table
B Axis Swivel-Rotary Table

Control: CNC Sinumerik 840D sl Profinet
Parts Carrier / Rotary Tables: 2 x 3
Table Load per A-Axis Carrier: 1600 kg (x2)
Width of A-Axis Table: 1920 mm
Workpiece Installed Height: 400 mm
Max Diameter Parts Carrier A-Axis: 800 mm
Hydraulic Clamping
Number of Spindles: 3

Spindle Speed: 8000 RPM
Spindle Power: 40/49 kW
Spindle Torque: 300/360 Nm
Spindle Taper: HSK-A 100

Tool Change Unit: 120 Positions (2x60)
Max Tool Diameter: 260 mm
Max Tool Length: 420 mm
Max Tool Weight: 20 kg

Tool Life Management with Sister Tool System
Coolant Through Spindle: 0-70 bar Stepless Programmable
Chip Conveyor: Knoll
Total Power Requirement: 170 kVA
Tool Flange Contact Control
Coolant Gun

Probe for Tool Breakage and Length Measuring
Electromechanical Tool-Length Measuring Device GROB
BLUM Laser for Tool Measuring
Tool Coding
3D Touch Probe M&H
Electric Handwheel Siemens HT8

Coolant Gun
Coolant Shower
Air Gun
Oil Skimmer
Automatic Door
Remote Diagnosis
Machine Weight: ca. 40 t
Machine Dimensions: ca. 8.4 x 6.1 x 3.4 m
