Samag TFZ 2L - 1000 Variable Speed
Ref :
2728775-3-GO
Condition :
Used
Manufacturer :
Samag
Model :
TFZ 2L - 1000
Spindle Speed :
Variable Speed
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

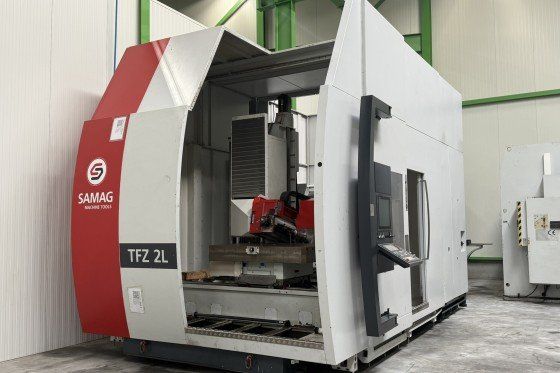

Samag TFZ 2L - 1000
Year: 2018
Heidenhain TNC640 control
4-side complete machining
Swiveling drilling and milling unit
DCM Dynamic Collision Monitoring
CAM model
QCK (Quick Check Kinematics)
Transfer bore cycle (380-382)
90 bar IKZ coolant system
Extra ATC tower 24 position (4 x 6) HSK 63
Double ballscrew construction
Clear tank 1650 L
Waste tank 1300 L
Chip conveyor
Max drill diameter steel 36 mm
Drilling depth 1250 mm
X travel 1600 mm
Y travel 1250 mm
Z travel 1100 mm
Length approx. 8100 mm
Width approx. 6300 mm
Height approx. 4300 mm
Weight 31000 kg
