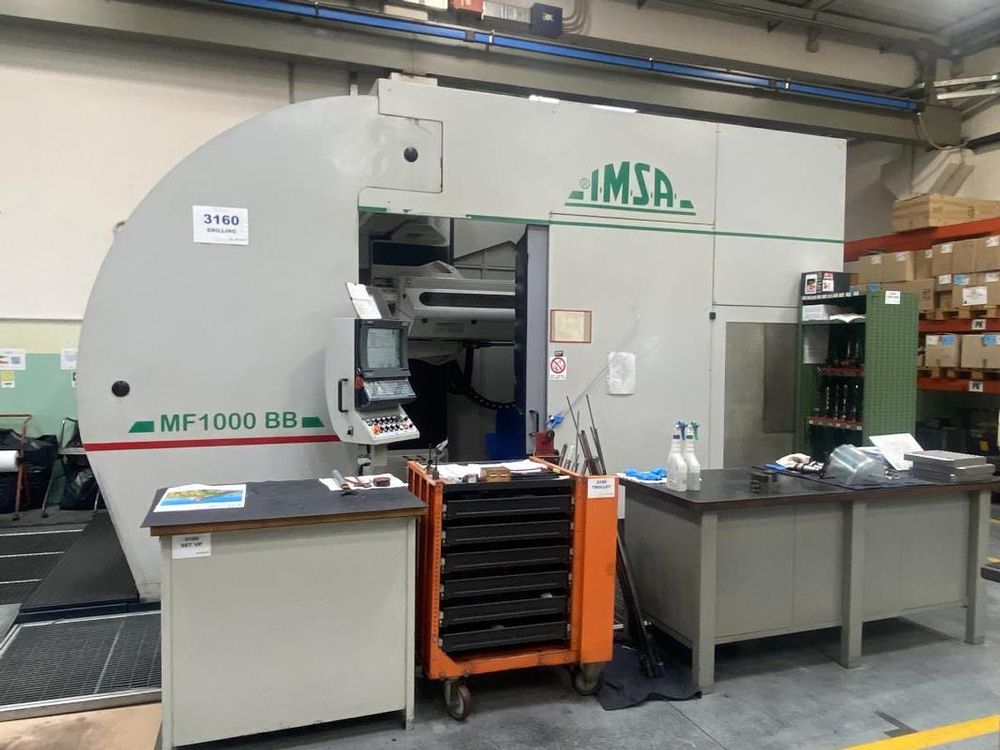

Imsa MF 1000 BB 4200 rpm

X-axis travel: 1250 mm
Y-axis travel: 1000 mm
Z-axis travel: 380 mm
V-axis drilling depth: 1000 mm
W-axis workpiece approach: 500 mm
B-axis table rotation: 360.000°
B-axis resolution: 0.001°
C-axis drilling head inclination: ±20°
CNC: SELCA 4040D
Measuring system: Optical scales
Drilling diameter range: 5–40 mm
Spindle motor power: 10 kW
Spindle speed: 4200 rpm
Drilling type: Gundrill
Table surface: 1000 x 800 mm
Table tilting: ±22.5°
Table load capacity: 4000 kg
Rapid feed X-axis: 10 m/min
Rapid feed Y-axis: 10 m/min
Rapid feed Z-axis: 10 m/min
Rapid feed V-axis: 10 m/min
Coolant tank capacity: 650 l
Total installed power: 30 kW
Machine dimensions: 5000 x 2600 x 3300 mm
Machine weight: 17500 kg

Features / Options / Equipment
Gundrilling capability
Rotary table
Tilting table
Coolant system
