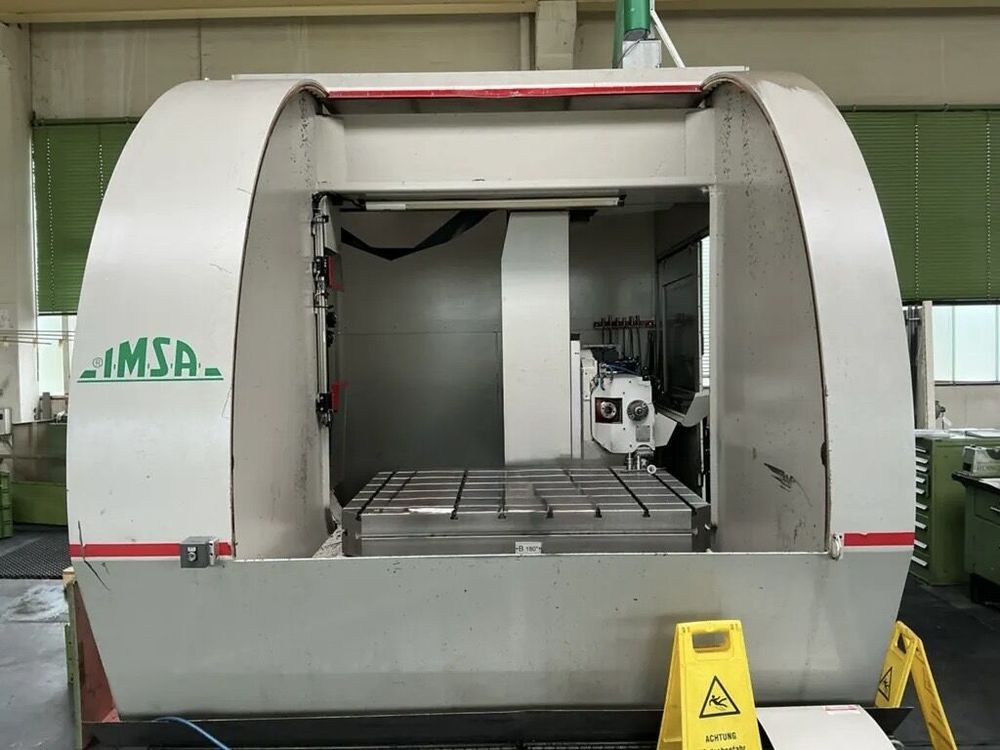

Imsa MF 1200 BBL 4200 rpm

Travel X (longitudinal): 1650 mm
Travel Y (vertical): 1000 mm
Travel Z (cross table): 860 mm

Depth of drilling V: 1200 mm
Head inclination C: +/-20°
Table rotation B: 0.001°
Workpiece approach W: 500 mm
Control: SELCA 4045
Drilling diameter min-max: 5–40 mm

Spindle motor power: 9 kW
Spindle speed: 4200 rpm

Tool changer positions: 20
Tool holder: ISO40
Table surface: 1200x1000 mm
Table resolution B axis: 0.001°
Table load capacity: 6500 kg

Max. workpiece swing: Ø2100 mm
Coolant system pressure: 5–120 bar
Milling unit
Machine dimensions (LxWxH): 4135x5800x3450 mm
