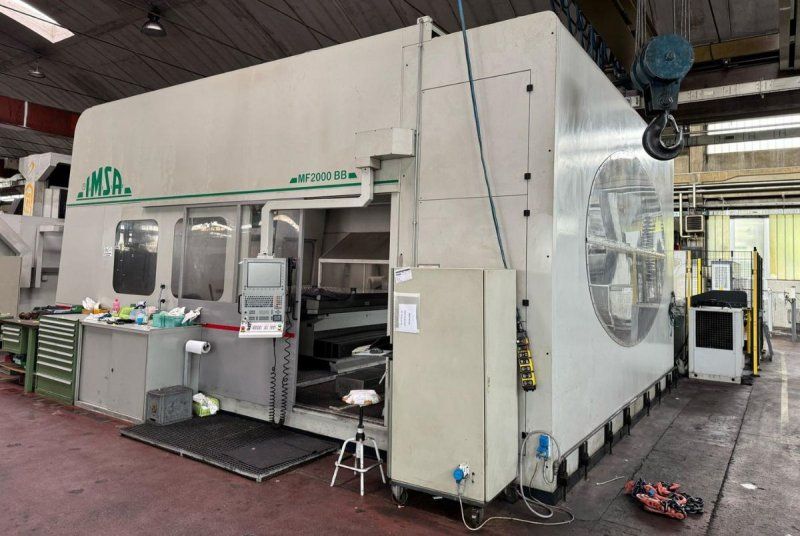

Imsa MF2000 BB 4200 rpm

Longitudinal travel: 3250 mm
Transversal travel: 500 mm
Vertical travel: 1500 mm
W-axis: 500 mm
Rapid feeds: 8 m/min
Min drilling diameter: 5 mm
Max drilling diameter: 50 mm
Max drilling depth: 2000 mm
Drilling revolution speed: 4200 rpm
Head: ISO 50; ±20°; 17 kW
Table size: 2500 x 2000 mm
Max admitted load: 50000 kg
High pressure coolant: 80 Bar
Tool magazine: 20 positions
Control unit: Heidenhain TNC 530
Weight: 45000 kg
Overall dimensions: 6000 x 8000 x 4300 mm
Swarf conveyor
Linear scales
Portable handwheel
Max admitted load on rotary and shifting table for rotating piece: 30000 kg
Gundrills with adapter bushes
Rapid clamping plate: 2200 x 2500 x 70 mm
