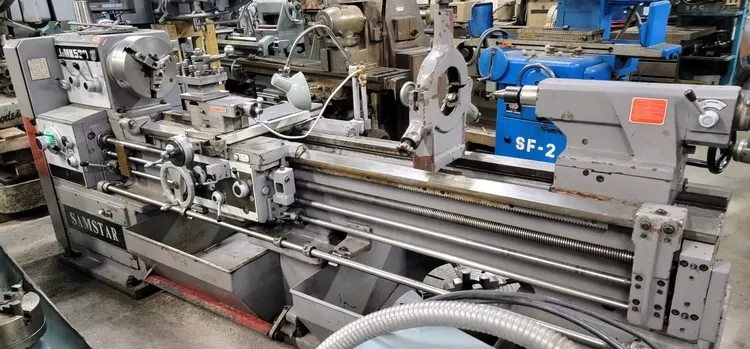

Samstar Engine Lathe 1500 RPM JIMK530

Swing over bed: 21"
Swing over cross slide: 13 1/8"
Swing in gap: 28 1/8"
Length of gap: 11 1/4"
Spindle bore: 3 1/8"
Spindle nose: Camlock D1-8
Spindle speed range: 25–1500 RPM
Threading range: 0.5–7.0 mm pitch
Threading range: 4–56 TPI
Threading range: 28–4 DP
Tailstock spindle diameter: 2 9/16"
Tailstock spindle travel: 6 5/16"
Tailstock taper: Morse Taper No. 4
Cross slide travel: 10 5/8"
Bed width: 14 1/2"
Main motor: 10 HP
Machine height to work center: 44 1/8"
Net weight: 5732 lbs
Digital readout: Mitutoyo
Chuck: 12" 3-jaw scroll
Chuck: 12" 4-jaw independent
Steady rest
Follow rest
Micrometric carriage stop
