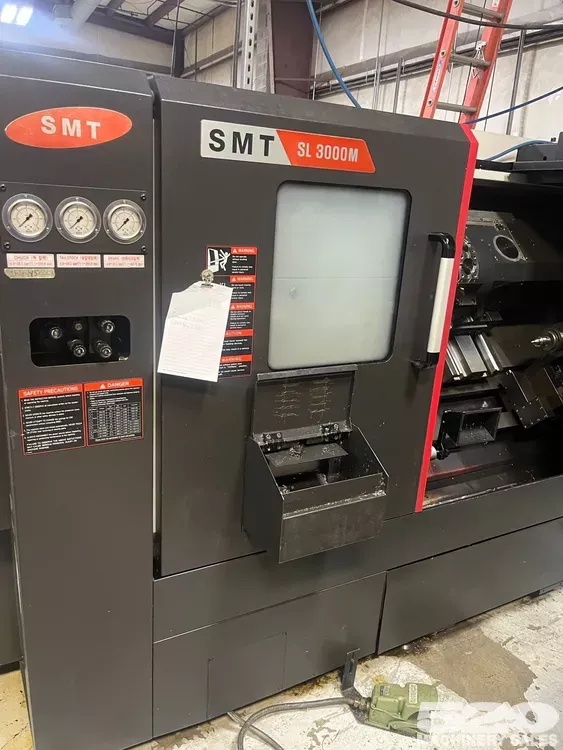

Samsung Fanuc OiTF CNC 3,000 rpm SL 3000M 2 Axis

X Axis Travel: 9.65”
Z Axis Travel: 35.43”
Rapid Traverse X Axis: 945 ipm
Rapid Traverse Z Axis: 1181 ipm
C Axis Minimum Programmable Angle: 0.001°
Control: Fanuc OiTF CNC
Live Tooling
Full C Axis
Tool Presetter
Programmable Tailstock
Parts Catcher
Chip Conveyor
Bar Capacity: 3.5”
Swing Over Bed: 25.59”
Swing Over Cross Slide: 18.90”
Turning Diameter: 15.94”
Maximum Turning Length: 29.33”
Maximum Milling Diameter: 15.31”

Spindle Speed: 3,000 rpm
Spindle Motor: 35 hp
Spindle Motor: 30 hp
Spindle Motor: 25 hp
Spindle Nose: A2-8
Spindle Bore: 4.13”
Draw Tube ID: 3.58”

Spindle Torque: 633.0 ft-lbs
Rotating Tool Speed: 5,000 rpm
Rotating Tool Spindle Motor: 7.5 hp
Rotating Tool Spindle Torque: 25.8 ft-lbs
12” Hydraulic Chuck
Turret: 12 Station BMT65
Tool Size Turning: 1”
Boring Bar Capacity: 2”
3 Axial Live Toolholders
3 Radial Live Toolholders
Dimensions: 128.3 x 69.3
Weight: 15,400 lbs
