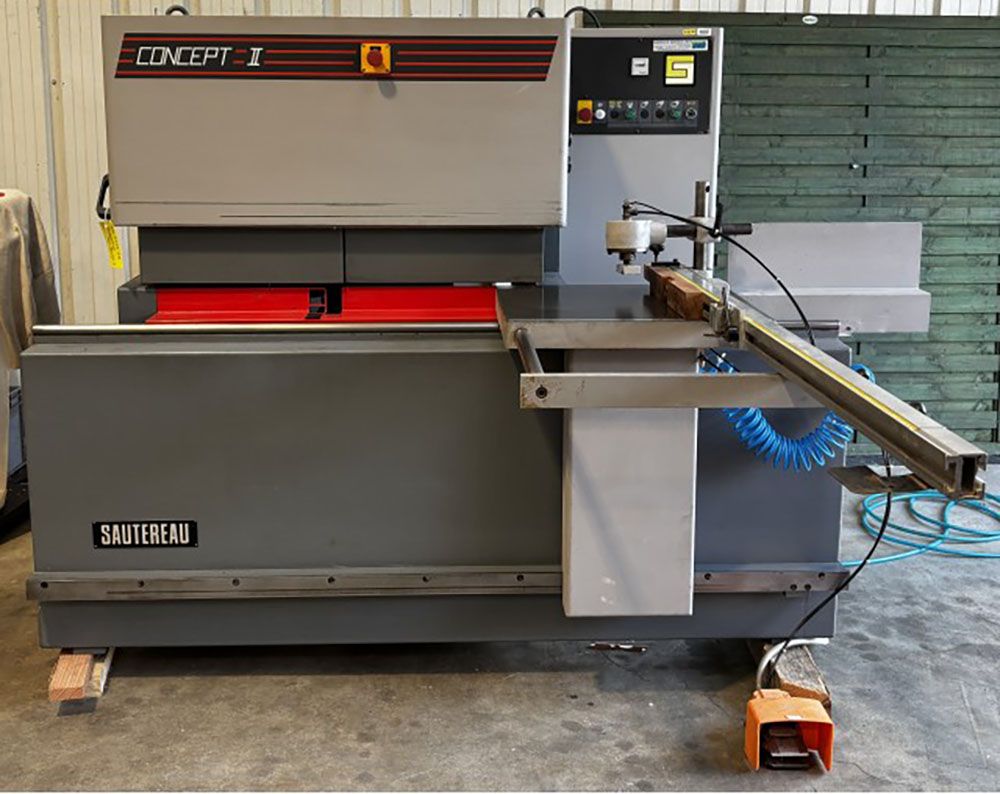

Sautereau CONCEPT 2 SINGLE TENONING MACHINE

MAKING CAPACITIES:
- Max. thickness/height: 125 mm
Max. tenon depth: 145 mm
- Max. timber length on table: 2.50 m (depending on weight)
- Max. cutting height: 125 mm

MACHINE COMPOSITION:
Motorized table:
- Ball-bearing slides
- 60x50 cm cast iron table with -15°/+50° angle graduation
+50 cm support extension (table extension)
- 1500-2500 mm graduated ruler with a retractable stop
- 1 pneumatic pressure device for holding the timber in place Control pedal Pneumatic

Sawing:
- Saw blade Ø400 mm, bore Ø30 mm
- Motor power 2.2 kW, rotation speed 3000 rpm
- Clearance before the saw 56 cm

Router:
- Motor power 5.5 kW
- Arbor Ø50 mm, working length 190 mm
- Rotation speeds 3000 / 6000 rpm
- Vertical stroke 230 mm and lateral stroke 230 mm
- Maximum tool diameter Ø350 mm

OTHER TECHNICAL SPECIFICATIONS:
- Main power supply 380 V. 50Hz
- Installed power 7.7kW (10 hp) IN 7A
- Digital meters for manual operation adjustments
- Operating pneumatic pressure 6-7 bar
- Intake ports: Ø150 mm
- Recommended flow rate for installation: m3/h
Speed ​​m/sec
- CE marked, brake motors, padlockable disconnect switch, mushroom stops, and position-dependent protectors
Dimensions (LxWxH): 2.75 x 1.40 x H.1.65m
Weight: 850 to 900 kg
